J.I. Case 446


J.I. Case 446 lawn tractor photo
1972 - 1988
Model year
400 Series
Garden tractor
Series map:
444
446
448
14.0hp
16.0hp
18.0hp
Production
ManufacturerJ.I. Case
Garden tractor
Built in Winneconne, Wisconsin, USA
J.I. Case 446 Engine
16HP Onan 716cc 2-cyl gasoline
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Capacity
Fuel3 gal
11.4 L
Hydraulic system1.25 gal
4.7 L
Hydraulics
Typeopen center
Capacity1.25 gal
4.7 L
Valves2
Pump flow8 gpm
30.3 lpm
Tractor hitch
Rear Type0 OptOptional
Typesleeve hitch OptOptional
Power Take-off (PTO)
Front PTOindependent
Dimensions & Tires
Wheelbase46 inches (early)
116 cm
 48 inches (late)
121 cm
Weight702 lbs
318 kg
Front tire6.50-8
Rear tire8.00-16
Full dimensions and tires ...
J.I. Case 446 attachments
44" mid-mount mower deck
48" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
Attachment details ...
446 Serial Numbers
19729668002
19739678031
19749694673
19759713265
19769727857
19779740617
19789754759
19799767590
19809785820
198114009950
198214025407
198314040936
198414060091
198514073621
198614095530
19871412151
198814112874

FAQ: How to read a serial number table.
446 Serial Location
J.I. Case 446 serial number location

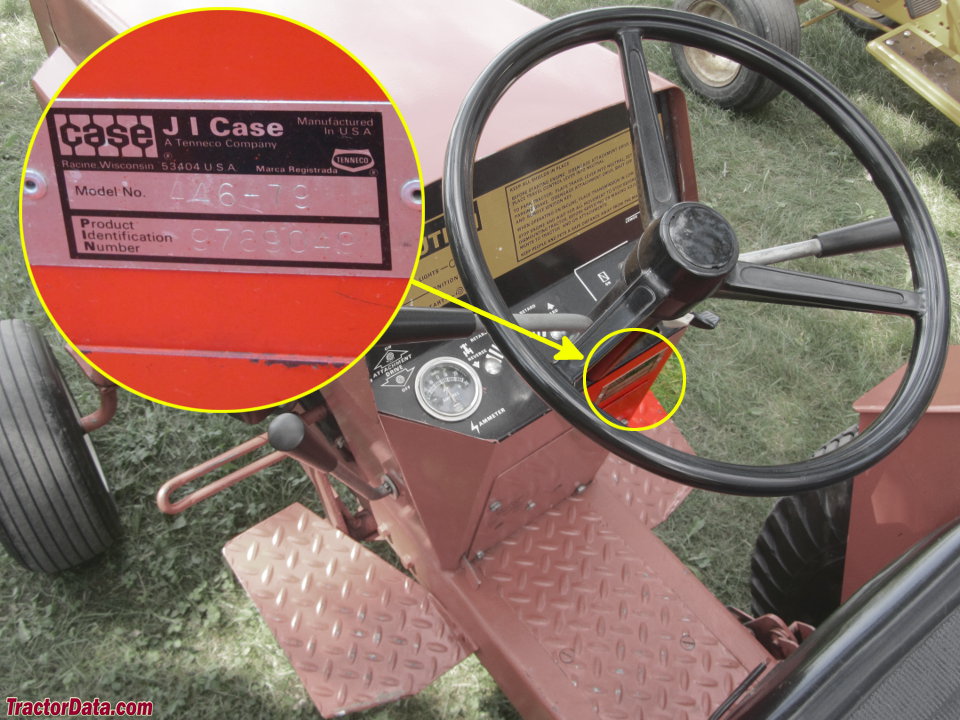

Serial number plate on the right side of the Case 446 instrument panel.
Electrical
Groundnegative
Charging amps15
Battery volts12
Battery AH24
References
446 references literature
Garden tractor planning guide published in 1977, by J.I. Case
Case Planning Guide published in 1980, by J.I. Case
Case Lawn/Garden Tractors published in 1984, by J.I. Case
The Tractor Specialist Buyers Guide published in 1983, by J.I. Case
The Tractor Specialist Buyers Guide published in 1984, by J.I. Case
Tractor & Loaders Buyers Guide published in 1985, by J.I. Case
Lawn & Garden Tractors published in 1984, by Ingersoll
