Power King 2417

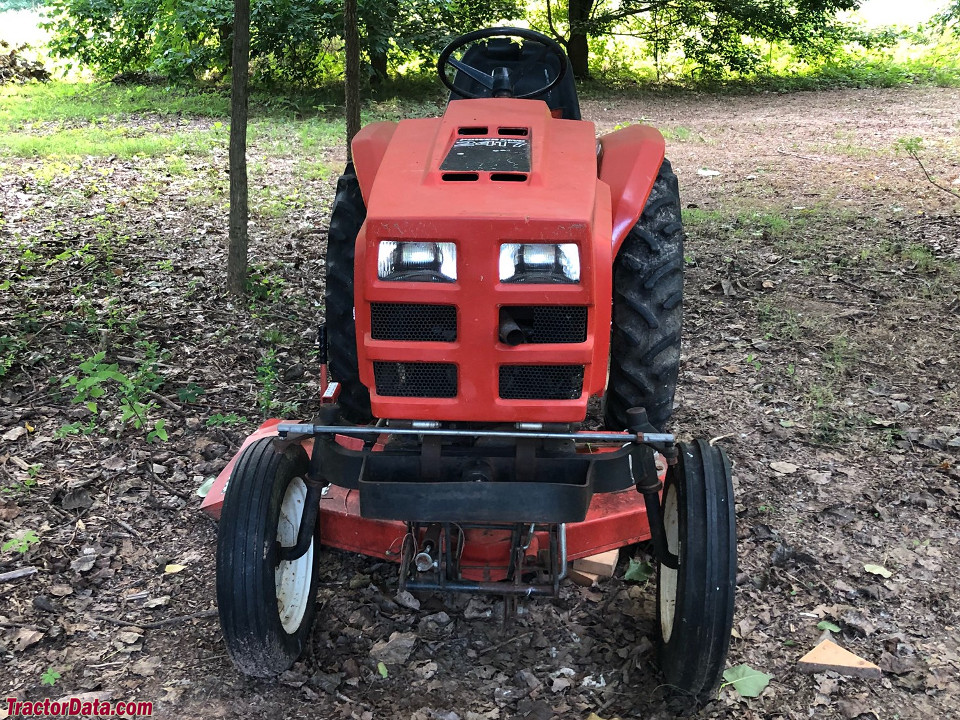

Power King 2417 lawn tractor photo
1984 - 1988
2400 Series
Garden tractor
Series map:
2417
17.0hp
Production
ManufacturerPower King (a part of Engineering Products Company)
Garden tractor
Built in Waukesha, Wisconsin, USA
Power King 2417 Engine
17HP Kohler 691cc 2-cyl gasoline
Fuel tank8.25 gal
31.2 L
Engine details ...
Mechanical
Two-wheel drive
Final drivesspur bull gears
Steeringmanual
Open operator station.
Tractor hitch
Rear Type0 (optional)
Power Take-off (PTO)
Rear PTOindependent (optional)
Rear RPM2000
Front PTOindependent
Clutchelectro-magnetic
Dimensions & Tires
Wheelbase57 inches
144 cm
Weight1057 lbs
479 kg
Front tire8.0-10
Rear tire8.3-24
Full dimensions and tires ...
Power King 2417 attachments
48" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...
2417 Serial Numbers
Location:Serial number decal on dashboard.
Electrical
Groundnegative
Charging amps15
Battery volts12
Battery AH45
References
2417 references literature
Owner's Manual for 1600/2400 Series Tractors (98-7171) published in 1984
