Power King 2417 Engine


Power King 2417 lawn tractor photo
1984 - 1988
2400 Series
Garden tractor
Series:2417
2418
Engine Detail
Kohler KT17
gasoline
2-cylinder
air-cooled horizontal-shaft
Displacement691 cc
42.18 ci
Bore/Stroke3.125x2.75 inches
79 x 70 mm
Power17 hp
12.7 kW
Starterelectric
Starter volts12
Oil capacity1.75 qts
1.7 L

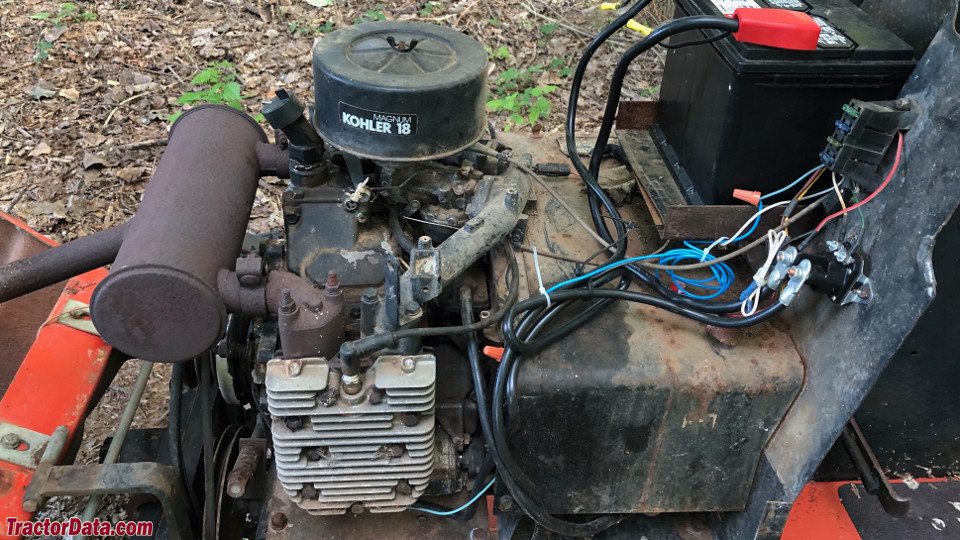

Power King 2417 Engine
Power King 2417 engine image
Image courtesy of Adrian Miller
