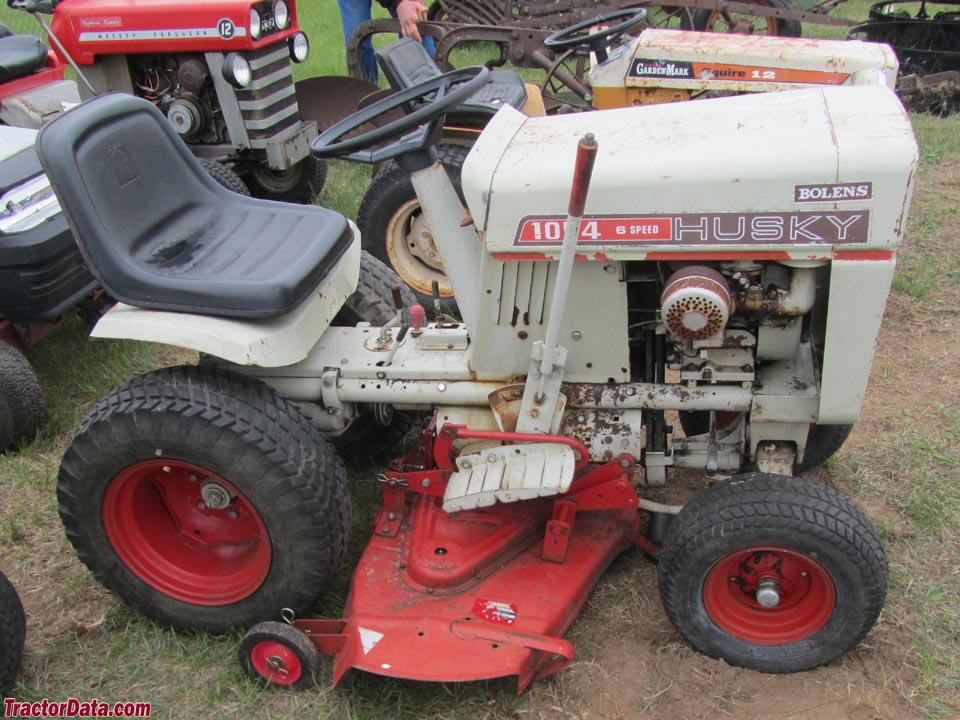

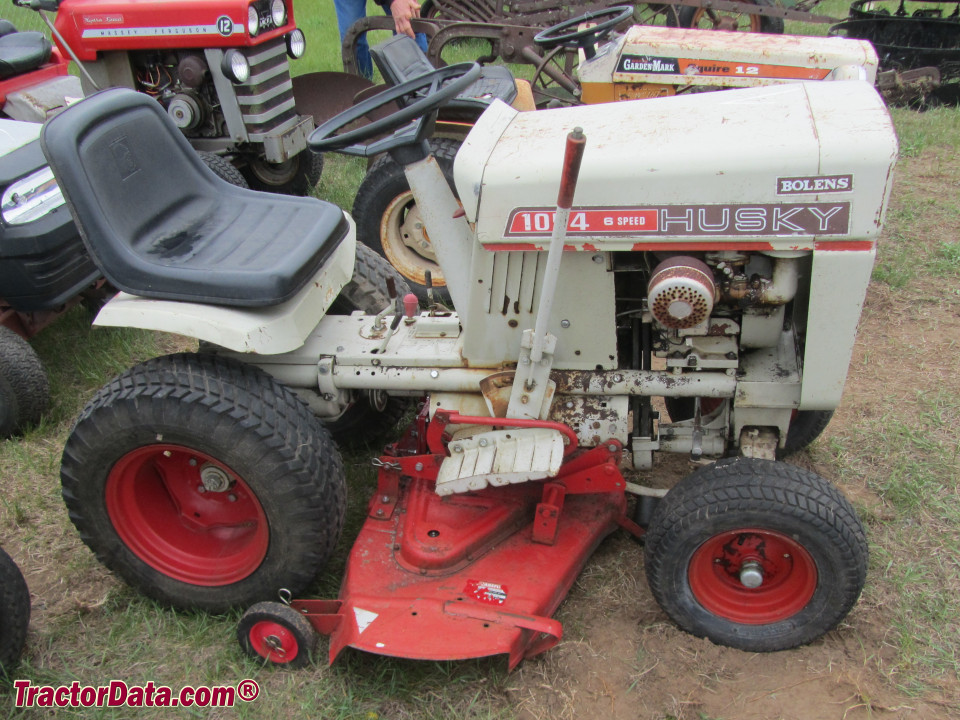

Bolens 1054
|
|
| Production | |
| Manufacturer | Bolens |
| Garden tractor | |
| Built in Port Washington, Wisconsin, USA | |
| Bolens 1054 Engine | |
| 10HP Wisconsin 361cc 1-cyl gasoline | |
| Fuel tank | 1.25 gal 4.7 L |
 Engine details ... | |
| Bolens 1054 Transmission | |
| 6-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Differential lock | manual locking hub |
| Manual steering | |
| Drum brakes | |
| Open operator station | |
| Photos | |
 | |
 Bolens 1054 photos... | |
| Power Take-off (PTO) | |
| Front PTO | independent |
| Clutch | manual |
| Front PTO Type | shaft |
| pulley OptOptional | |
| Engine RPM | 3600@3600 |
| Dimensions & Tires | |
| Wheelbase | 43 inches 109 cm |
| Weight | 645 lbs 292 kg |
| Front tire | 16x6.50-8 |
| Rear tire | 23x8.50-12 |
 Full dimensions and tires ... | |
| Bolens 1054 attachments | |
| 42" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| 1054 Serial Numbers | |
| Location: | Serial number plate on the left side of the hood support. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Big tractor published in 1971, by Bolens | |
| Installation Instructions Hydraulic Lift Kit 18703 (552189) published in 1971 |
