Lawn Tractors > Bolens > 1054

Bolens 1054 Transmission



Bolens 1054 tractor photo
1971 - 1972
Tube Frame Series
Garden tractor
Series map:
1054
10.0hp
Transmission
TransmissionBolens 1716736
Typebelt-driven gear
Gears6 forward and 2 reverse
Oil capacity2.5 qts
2.4 L
Oil type
EP 90

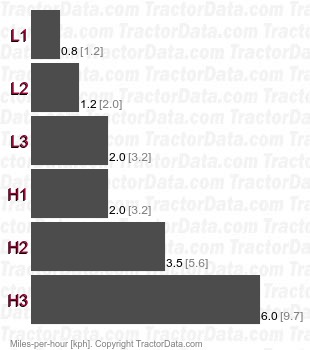

Speeds
1054 1716736 belt-driven gear speeds

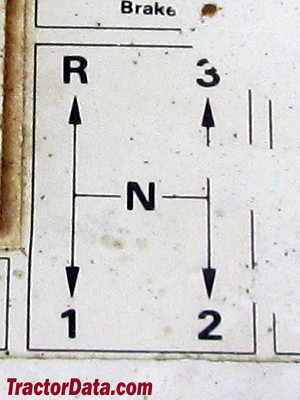

Shift Pattern
Bolens 1054 transmission controls

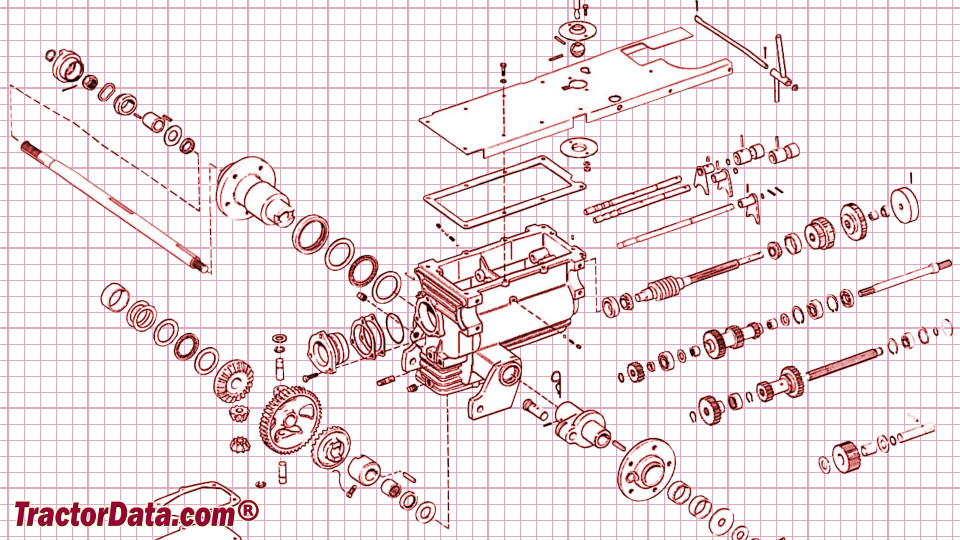

Bolens 1054 Transmission
Bolens 1054 transmission image
