| | 1964 - 1965 |
| Tube Frame Series | | Garden tractor |
|
Series map:
800
900
1000
7.2hp
8.2hp
10.0hp
| Engine Detail |
| Wisconsin S8D |
| gasoline |
| 1-cylinder |
| air-cooled horizontal-shaft |
| Displacement | 331 cc
20.2 ci
|
| Bore/Stroke | 3.125x2.625 inches
79 x 67 mm
|
| Power | 8.25 hp
6.2 kW
|
| Rated RPM | 3600
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 2 qts
1.9 L
|

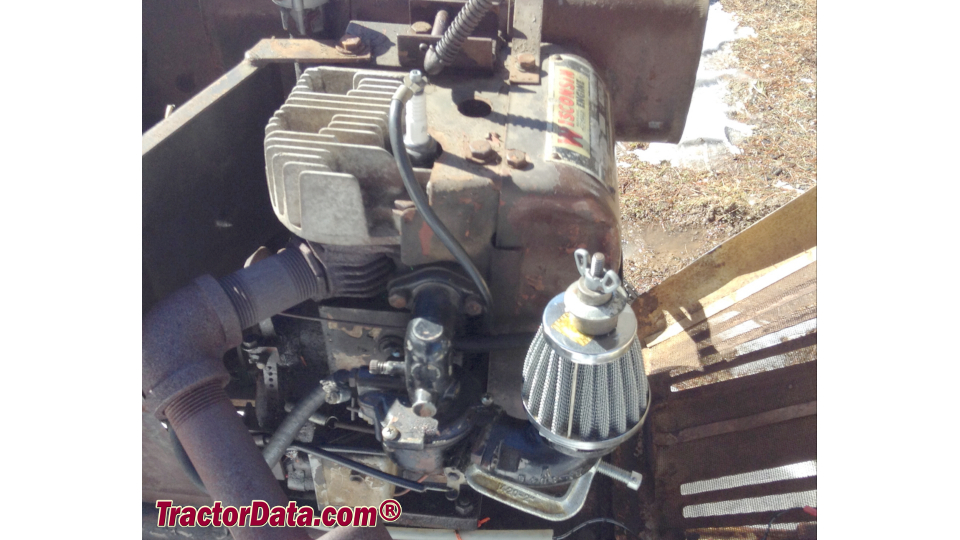

| Bolens 900 Engine |
 |
| Image courtesy of Paul Fortin |
