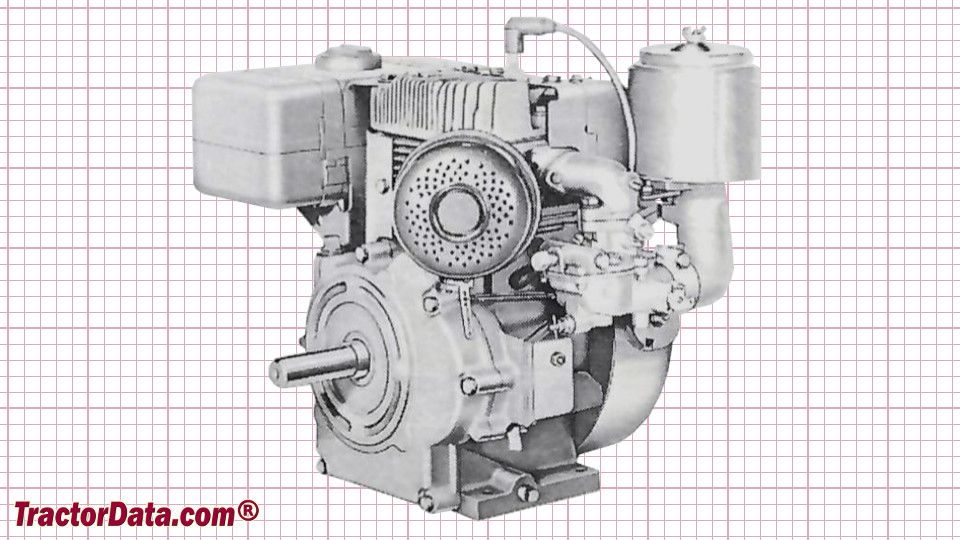

Bolens 800 Engine


Bolens 800 lawn tractor photo
1963 - 1965
Tube Frame Series
Garden tractor
Series map:
600
800
900
6.0hp
7.3hp
8.3hp
Engines overview
7.25HP Wisconsin 304cc 1-cyl gasoline
8.25HP Wisconsin 331cc 1-cyl gasoline
Engine Detail
Wisconsin S7D
gasoline
1-cylinder
air-cooled
Displacement304 cc
18.6 ci
Bore/Stroke3.00x2.625 inches
76 x 67 mm
Power7.25 hp
5.4 kW
Air cleaneroil bath
Rated RPM3600
Oil capacity1 qts
0.9 L
Engine Detail
Wisconsin S8D
gasoline
1-cylinder
air-cooled
Displacement331 cc
20.2 ci
Bore/Stroke3.125x2.625 inches
79 x 67 mm
Power8.25 hp
6.2 kW
Rated RPM3600
Starterelectric
Starter volts12
