| | 1962 - 1965 |
| Tube Frame Series | | Garden tractor |
|
Series map:
600
800
6.0hp
7.2hp
| Engine Detail |
| Briggs & Stratton 142301 |
| gasoline |
| 1-cylinder |
| air-cooled horizontal-shaft |
| Displacement | 231 cc
14.1 ci
|
| Bore/Stroke | 2.75x2.375 inches
70 x 60 mm
|
| Power (gross) | 6 hp
4.5 kW
|
| Air cleaner | oil bath
|
| Starter | manual recoil
|
| | electric OptOptional
|
| Starter volts | 12
|
| Oil capacity | 1.4 qts
1.3 L
|

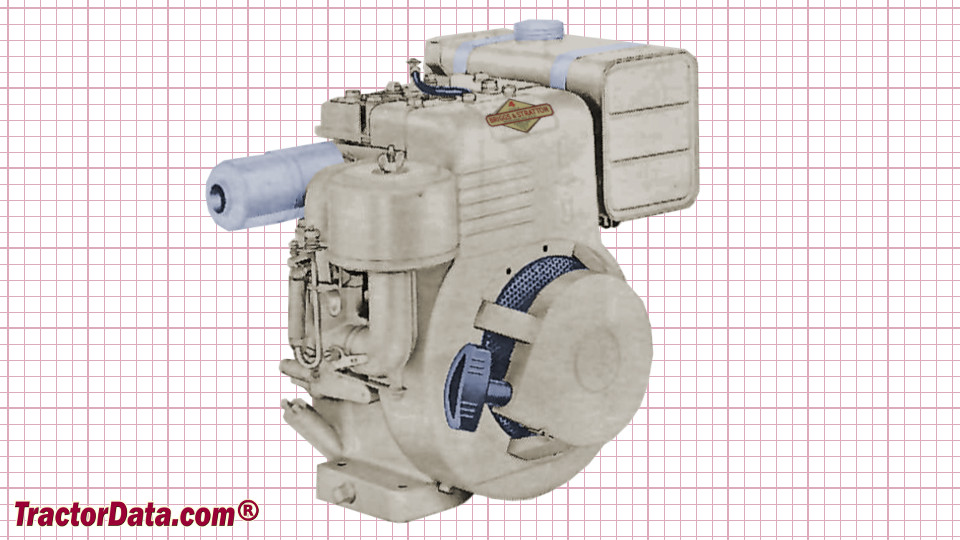

| Bolens 600 Engine |
 |
