Allis Chalmers 611 Hydro

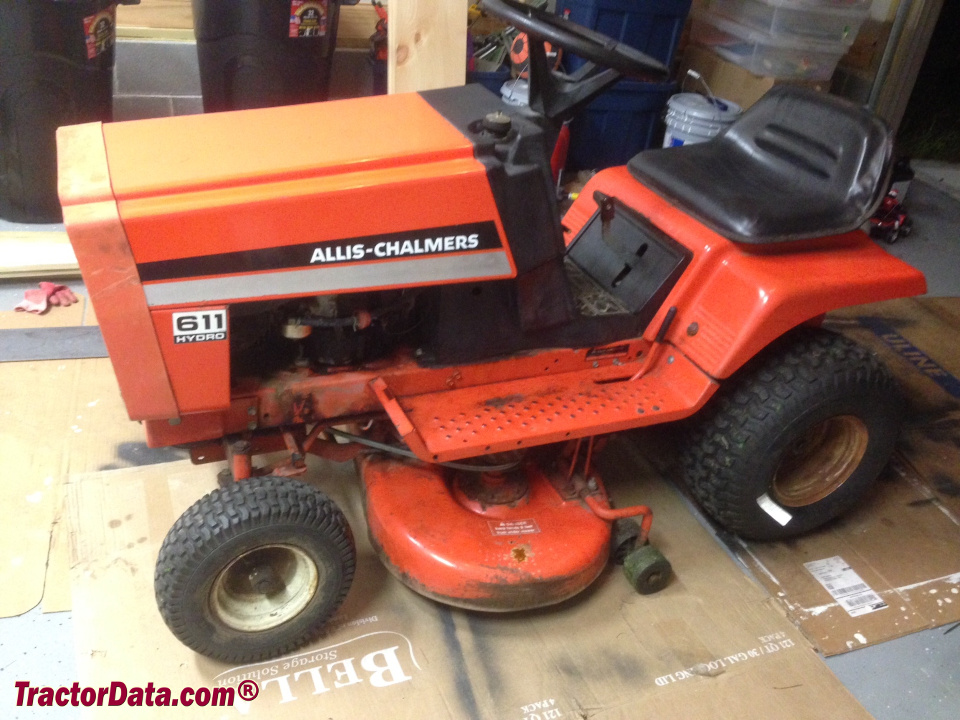

Allis Chalmers 611 Hydro lawn tractor photo
1983 - 1985
600 Lawn Series
Lawn tractor
Series map:
611 Hydro
616 Hydro
11.0hp
16.0hp
Production
ManufacturerAllis Chalmers
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price was $2,499 in 1984
The Allis-Chalmers 611 was similar to the Simplicity 4200 Series lawn tractors.
Allis Chalmers 611 Hydro Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank2.2 gal
8.3 L
Engine details ...
Mechanical
Two-wheel drive
Steeringmanual
Disc brakes
Open operator station.
Dimensions & Tires
Wheelbase45.5 inches
115 cm
Weight550 lbs
249 kg
Front tire13-6.00x6
Rear tire18-8.50x8
Full dimensions and tires ...
Allis Chalmers 611 Hydro attachments
36" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Charging amps3
Battery volts12
References

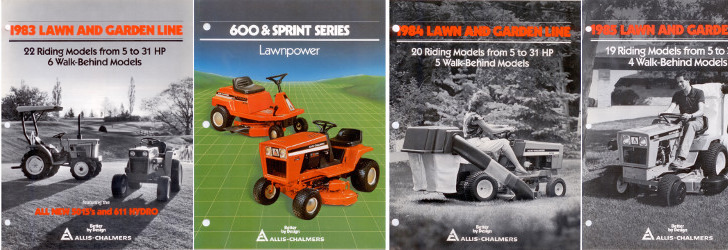

611 Hydro references literature
1983 Lawn and Garden Line published by Allis-Chalmers
600 & Sprint Series published in 1984, by Allis-Chalmers
1984 Lawn and Garden Line published by Allis-Chalmers
1985 Lawn and Garden Line published by Allis-Chalmers
