Lawn Tractors > Cub Cadet > 2164

Cub Cadet 2164 Engine



Cub Cadet 2164 tractor photo
1999 - 2000
2000 Series
Lawn tractor
Series map:
2146
2164
2166
14.0hp
16.0hp
16.0hp
Engine Detail
Vanguard
gasoline
2-cylinder
air-cooled horizontal-shaft V-Twin
Displacement480 cc
29.3 ci
Bore/Stroke2.68x2.60 inches
68 x 66 mm
Power (gross)16 hp
11.9 kW
Rated RPM3350
Idle RPM1200-3600
Starterelectric
Starter volts12
Sparkplug759-3336
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.005 inches (cold)
0.127 mm
Exhaust valve clearance0.005 inches (cold)
0.127 mm
Engine Oil

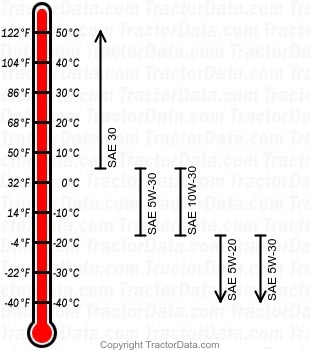

2164 gasoline engine oil chart
Oil capacity1.75 qts
1.7 L
Oil change50 h

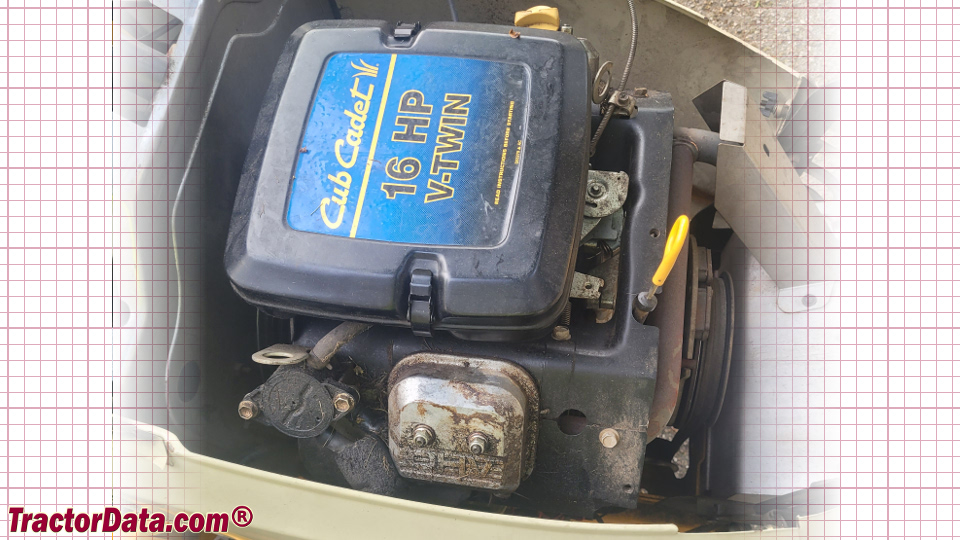

Cub Cadet 2164 Engine
Cub Cadet 2164 engine image
Image courtesy of Myles M.
