Cub Cadet HDS 2165 Engine


Cub Cadet HDS 2165 lawn tractor photo
1994 - 1999
2000 Series
Garden tractor
Series map:
2160
2165
2185
16.0hp
16.0hp
18.0hp
Engine Detail
Briggs & Stratton Vanguard
gasoline
2-cylinder
air-cooled
Displacement480 cc
29.3 ci
Bore/Stroke2.68x2.60 inches
68 x 66 mm
Power (gross)16 hp
11.9 kW
Rated RPM3600
Idle RPM1200-3600
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.005 inches (cold)
0.127 mm
Exhaust valve clearance0.005 inches (cold)
0.127 mm
Engine Oil

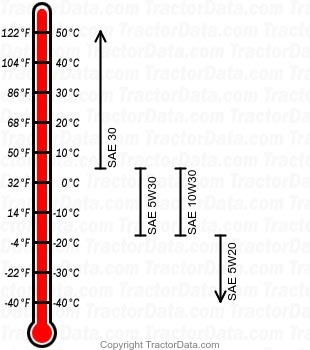

HDS 2165 gasoline engine oil chart
Oil capacity1.8 qts
1.7 L
Oil change50 h
