Lawn Tractors > Cub Cadet > 805

Cub Cadet 805



Cub Cadet 805 lawn tractor photo
1985 - 1986
Lawn tractor
Series map:
805
1105
8.0hp
11.0hp
Production
ManufacturerCub Cadet (a part of MTD)
Lawn tractor
Original price$2,179 (1985 )
$2,249 (1986 )
Cub Cadet 805 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank3 gal
11.4 L
Engine details ...
Cub Cadet 805 Transmission
5-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Photos
Cub Cadet 805
Cub Cadet 805 photos...
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase45 inches
114 cm
Weight473 lbs
214 kg
Front tire15x6-6
Rear tire20x10-8
Full dimensions and tires ...
Cub Cadet 805 attachments
36" mid-mount mower deck
snowblower
blade
Attachment details ...
805 Serial Numbers
Location:Left side of tractor frame.
Electrical
Groundnegative
Battery volts12

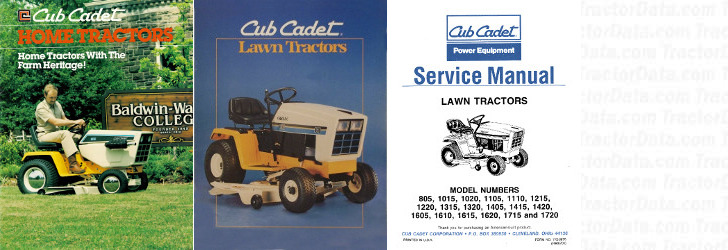

References
805 references literature
Home Tractors published in 1985, by Cub Cadet
Cub Cadet Lawn Tractors published in 1986
