Lawn Tractors > Cub Cadet > 805

Cub Cadet 805 Engine



Cub Cadet 805 lawn tractor photo
1985 - 1986
Lawn tractor
Series map:
805
1105
8.0hp
11.0hp
Engine Detail
Briggs & Stratton 191707
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement318 cc
19.44 ci
Bore/Stroke3.00x2.75 inches
76 x 70 mm
Power (gross)8 hp
6.0 kW
Idle RPM1800-3500
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

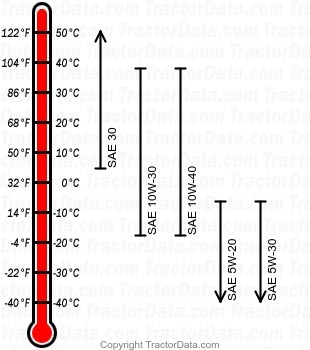

805 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change30 h
