Cub Cadet 1210 Engine


Cub Cadet 1210 tractor photo
1985 - 1989
Garden tractor
Series map:
1204
1210
1211
12.0hp
12.0hp
12.0hp
Engine Detail
Kohler K301
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement476 cc
29.07 ci
Bore/Stroke3.38x3.25 inches
86 x 83 mm
Power (gross)12 hp
8.9 kW
Idle RPM1800-3600
Starterelectric
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.009 inches*Cold
0.229 mm
Exhaust valve clearance0.018 inches*Cold
0.457 mm
Engine Oil

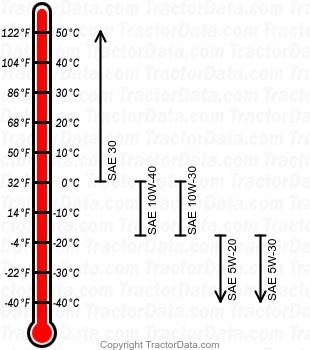

1210 gasoline engine oil chart
Oil capacity2 qts
1.9 L
