John Deere LA155

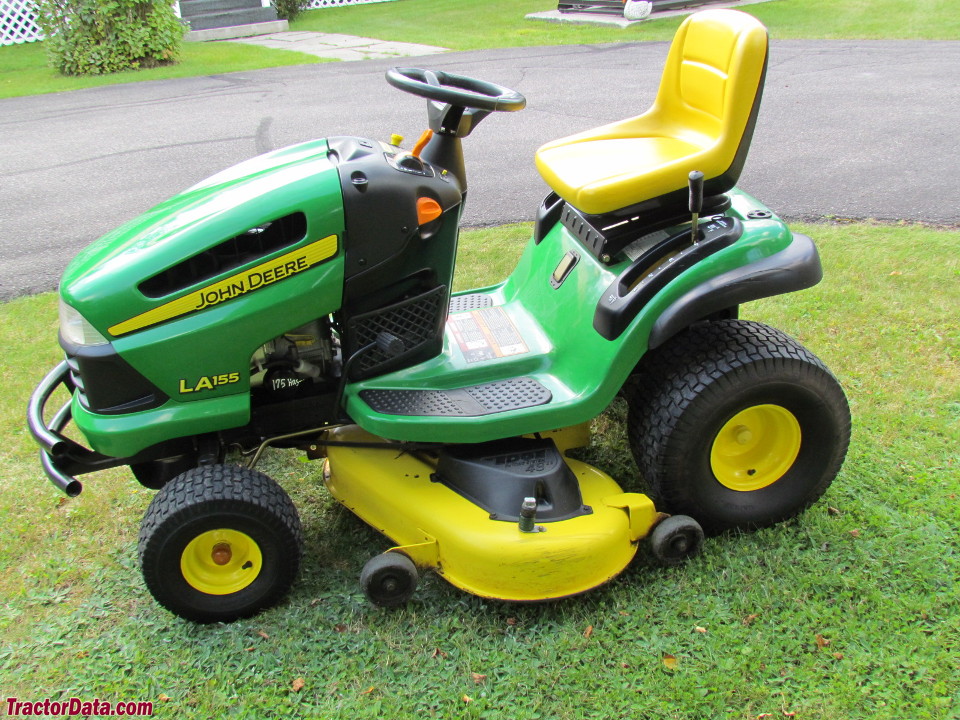

John Deere LA155 lawn tractor photo
2009 - 2010
LA105 Series
Lawn tractor
Series map:
LA145
LA155
LA165
22.0hp
22.0hp
24.0hp
Production
ManufacturerJohn Deere
Lawn tractor
Built in Greeneville, Tennessee, USA
Original price was $2,349 in 2010
John Deere LA155 Engine
22HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank4 gal
15.1 L
 2.25 gal (California model)
8.5 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station. Adjustable seat (10 position, 5.5-inches travel) and cup holder. Optional nylon canopy.
Dimensions & Tires
Wheelbase48.9 inches
124 cm
Weight525 lbs
238 kg
Front tire15x6-6
Rear tire20x10-8
Full dimensions and tires ...
John Deere LA155 attachments
48" mid-mount mower deck
snowblower
blade
Attachment details ...
LA155 Serial Numbers
2009200001
2010300001

FAQ: How to read a serial number table.
LA155 Serial Location
John Deere LA155 serial number location
Serial number plate under the left-rear fender.
Electrical
Groundnegative
Charging amps16
Battery volts12
Battery GroupU1
References
LA155 references literature
100 Series Tractors published in 2008, by John Deere
Operator's Manual 100 Series (OMGX23171) published in 2008
Operator's Manual 100 Series (OMGX23404) published in 2010
100 Series Tractors published in 2009, by John Deere
Page information
Contact: Peter Easterlund
Updated on July 24, 2022
Copyright 2022 TractorData LLC
