John Deere X360


John Deere X360 lawn tractor photo
2008 - 2015
Model year
Select X300 Series
Lawn tractor
Series map:
X340
X360
25.0hp
22.0hp
Production
ManufacturerJohn Deere
Lawn tractor
Built in Horicon, Wisconsin, USA
Original price was $5,099 in 2010
The John Deere X360 was the premium tractor in the Select X300 series due to its hydraulic power steering and lift.
John Deere X360 Engine
22HP Kawasaki 675cc 2-cyl gasoline
Fuel tank3.5 gal
13.2 L
Engine details ...
Mechanical
Two-wheel drive
Power steering
Wet disc brakes
Open operator station. Optional sunshade and vinyl weather enclosure. Adjustable seat with seven inches of travel. Cupholder and tool tray standard.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Weight570 lbs
258 kg
Front tire15x6.50-8
Rear tire22x11.00-10
Full dimensions and tires ...
X360 Serial Numbers
2008085001
2009120001
2010150001
2011180001

FAQ: How to read a serial number table.
X360 Serial Location

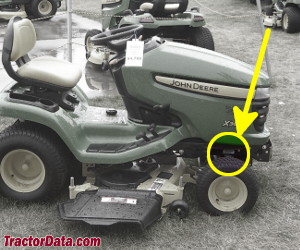

John Deere X360 serial number location
Serial number tag on the right side of the X360 frame, above the front axle.
Electrical
Groundnegative
Charging amps15
Battery CCA195
Battery volts12
References
X360 references literature
Select Series Tractors published in 2009, by John Deere
Operator's Manual X300 Tractors (OMM158184) published in 2008
Operator's Manual X300 Tractors (OMM161628) published in 2009
