Lawn Tractors > Wheel Horse > 264

Wheel Horse 264 Transmission



Wheel Horse 264 lawn tractor photo
1994 - 1996
260 Series
Garden tractor
Series:264 → 266-H
265 ↓
Transmissions overview
hydrostatic
6-speed gear
Transmission
TransmissionTuff Torq K-61A
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity3.5 qts
3.3 L
Oil type
SAE 10W-30
Oil changefill as needed
Speeds
264 K-61A belt-driven hydrostatic speeds
Transmission
TransmissionPeerless 820-024
Typebelt-driven gear
Gears6 forward and 1 reverse
Speeds

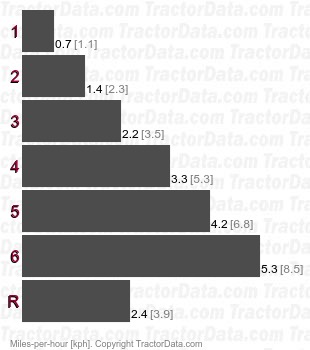

264 820-024 belt-driven gear speeds
