| | 1996 - 2002 |
| 260 Series | | Garden tractor |
|
Series map:
265
267-H
15.0hp
17.0hp
| Transmissions overview |
| hydrostatic |
| 6-speed gear |
| Transmission |
| Transmission | Tuff Torq K-61A
|
| Type | belt-driven hydrostatic
|
| Gears | infinite forward and reverse
|
| Oil capacity | 3.5 qts
3.3 L
|
| Oil type |
|
| Oil change | fill as needed
|
| The K61 was used in the Toro 265-H through the 1999 model year. |
| Speeds |
|
| Transmission |
| Transmission | Peerless 820-024
|
| Type | belt-driven gear
|
| Gears | 6 forward and 1 reverse
|
| Speeds |
|
| Transmission |
| Transmission | Hydro-Gear 330-3000
|
| Type | belt-driven hydrostatic
|
| Gears | infinite forward and reverse
|
| Oil capacity | 3.8 qts
3.6 L
|
| Oil type |
|
| Oil change | sealed unit, owner service is not recommended
|
| The Hydro-Gear transmission was used in the 265-H beginning with the 2000 model year. |

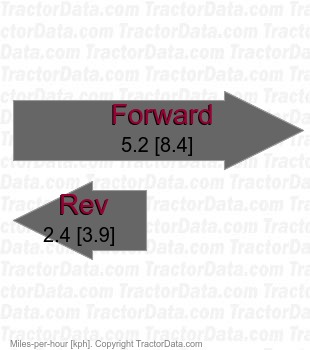

| Speeds |
|
