Lawn Tractors > Wheel Horse > 264

Wheel Horse 264 Engine



Wheel Horse 264 lawn tractor photo
1994 - 1996
260 Series
Garden tractor
Series map:
264
266-H
14.0hp
16.0hp
Engine Detail
Kohler CV14S
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement398 cc
24.3 ci
Bore/Stroke3.43x2.64 inches
87 x 67 mm
Power (gross)14 hp
10.4 kW
Starterelectric
Starter volts12
SparkplugChampion RC-12YC
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

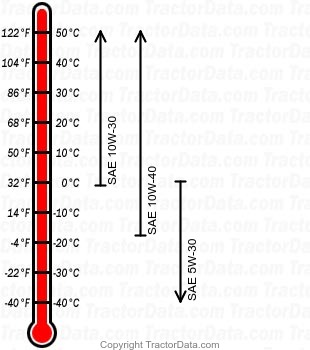

264 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change100 h
