Wheel Horse 212-H

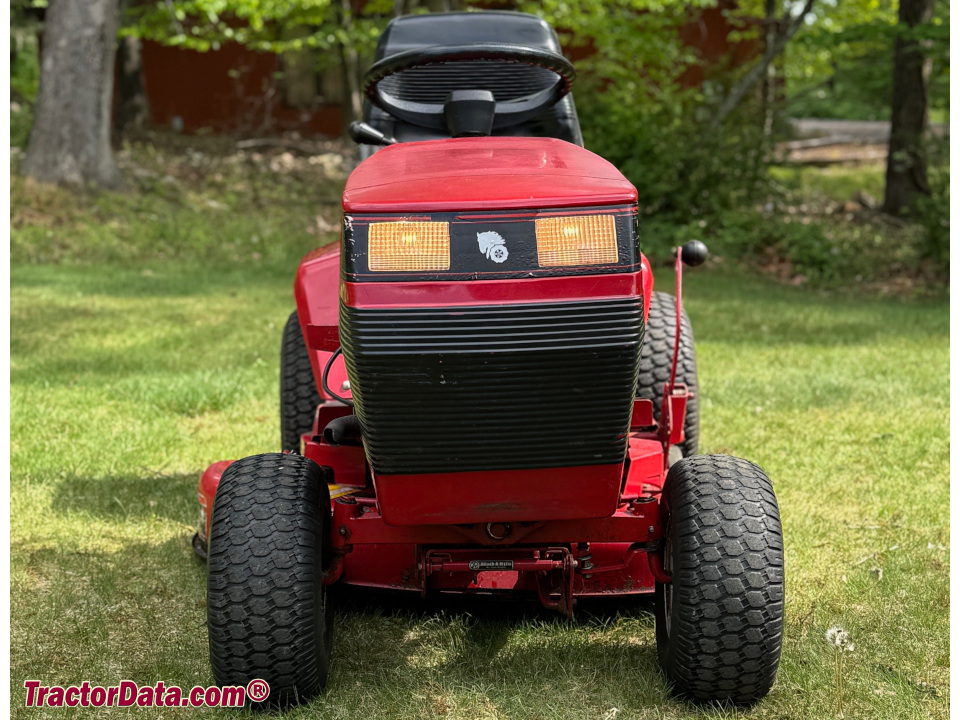

Wheel Horse 212-H lawn tractor photo
1988 - 1992
200 Series
Series:210-H212-H
Production
ManufacturerWheel Horse (a part of Toro)
Variants
212-Hhydrostatic
212-HSBSuper Bagger
212-55-speed
Wheel Horse 212-H Engines
12HP Kawasaki 460cc 1-cyl gasoline
12HP Briggs & Stratton 465cc 1-cyl gasoline
12HP Onan 388cc 1-cyl gasoline
Fuel tank1.5 gal
5.7 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Dimensions & Tires
Wheelbase44.5 inches
113 cm
Weight331 lbs
150 kg
Front tire15x6.00-6
Rear tire18x9.50-8
Full dimensions and tires ...
Wheel Horse 212-H attachments
36" mid-mount mower deck
37" mid-mount mower deck
30" mid-mount mower deck
blade
Attachment details ...
212-H Serial Numbers
212-H Serial Location
Wheel Horse 212-H serial number location
Serial number decal on the rear fender deck, below the tractor's seat.
Electrical
Groundnegative
Charging systemalternator
Charging amps13
Battery CCA200
Battery volts12
References
Wheel Horse Lawn & Garden Equipment published in 1988
Wheel Horse Lawn & Garden Equipment published in 1989
