Lawn Tractors > Wheel Horse > C-125

Wheel Horse C-125 Transmission



Wheel Horse C-125 tractor photo
1980 - 1984
C Series
Garden tractor
Series map:
C-105
C-125
C-145
10.0hp
12.0hp
14.0hp
Transmission options
6-speed gear
hydrostatic
Transmission
ManufacturerWheel Horse
Typebelt-driven gear
Gears6 forward and 2 reverse
Oil capacity2 qts
1.9 L
Speeds
C-125 belt-driven gear speeds
Transmission
TransmissionEaton 1100
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity5 qts
4.7 L
The Eaton hydrostatic was offered in 1980 and 1981. Additionally, a Sundstrand hydrostatic was used on some C-125 tractors in 1980, model code 01-12KS01.
Speeds

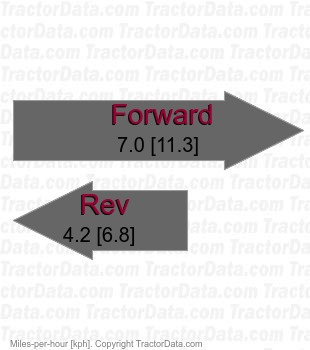

C-125 1100 belt-driven hydrostatic speeds
