Lawn Tractors > Wheel Horse > C-125

Wheel Horse C-125 Engine



Wheel Horse C-125 tractor photo
1980 - 1984
C Series
Garden tractor
Series map:
C-105
C-125
C-145
10.0hp
12.0hp
14.0hp
Engine Detail
Kohler K301AS
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement476 cc
29.07 ci
Bore/Stroke3.38x3.25 inches
86 x 83 mm
Power (gross)12 hp
8.9 kW
Air cleanerdry element
Rated RPM3600
Starterelectric
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Engine Oil

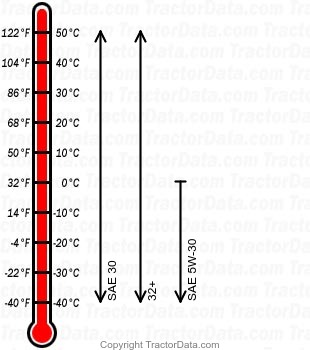

C-125 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change25 h
