Wheel Horse C-145 Transmission



Wheel Horse C-145 lawn tractor photo
1980 - 1984
C Series
Garden tractor
Series map:
C-125
C-145
C-165
12.0hp
14.0hp
16.0hp
Transmission options
6-speed gear
hydrostatic
Transmission
ManufacturerWheel Horse
Typebelt-driven gear
Gears6 forward and 2 reverse
Oil capacity2 qts
1.9 L
Speeds
C-145 belt-driven gear speeds
Transmission
TransmissionEaton 1100
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity5 qts
4.7 L
The Eaton hydrostatic was offered throughout the production run. Additionally, a Sundstrand hydrostatic was used on some C-145 tractors in 1980, model code 01-14KS01.
Speeds

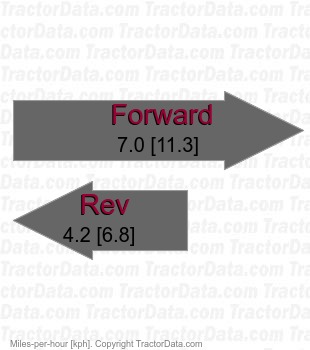

C-145 1100 belt-driven hydrostatic speeds
