Lawn Tractors > Wheel Horse > L-105 Lawn Ranger

Wheel Horse L-105 Lawn Ranger



Wheel Horse L-105 Lawn Ranger tractor photo
1965
Lawn tractor
Series map:
L-105
L-155
6.0hp
6.0hp
Production
ManufacturerWheel Horse
Lawn tractor
Built in South Bend, Indiana, USA
Variants
L-105recoil start
L-155electric start
Wheel Horse L-105 Engine
6HP Lauson 221cc 1-cyl gasoline
Engine details ...
Wheel Horse L-105 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Photos

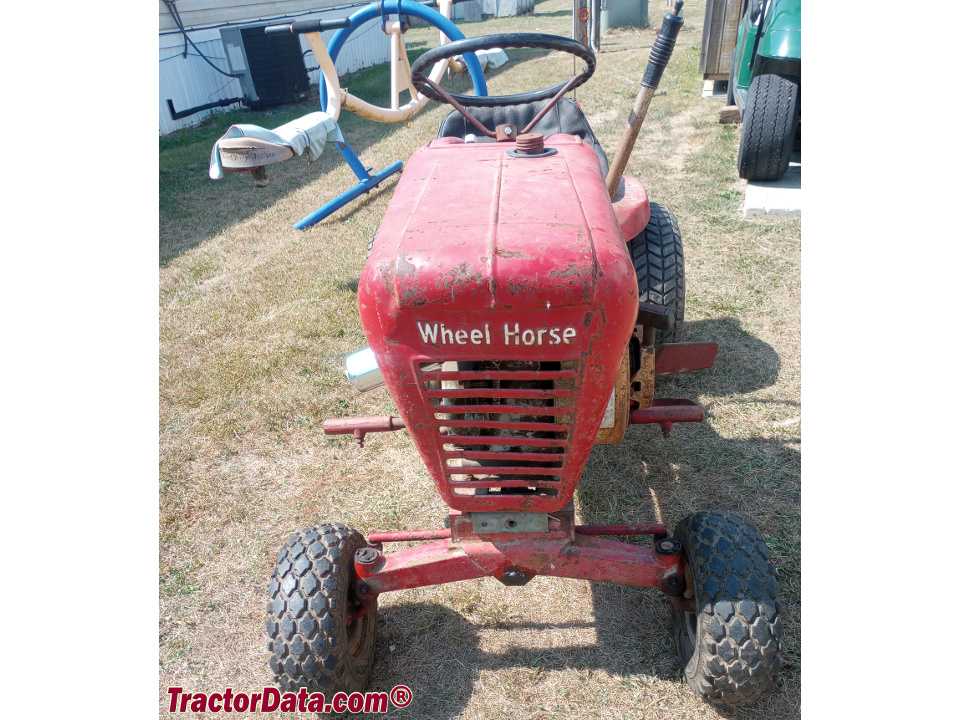

Wheel Horse L-105 Lawn Ranger.
Wheel Horse L-105 photos...
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Mid PTO Typepulley
Dimensions & Tires
Front tire10.5x4.50-4
Rear tire17x9.50-8
Full dimensions and tires ...
Wheel Horse L-105 attachments
32" mid-mount mower deck
snowblower
blade
Attachment details ...
L-105 Serial Number Location
Wheel Horse L-105 serial number location
Serial number plate on the left side of the dashboard support on the L-105 Lawn Ranger, under the hood.
References
L-105 Lawn Ranger references literature
What to look for in a Horse published in 1965, by Wheel Horse
Now...for exclusive Wheel-a-Matic Drive published in 1965, by Wheel Horse
