Cub Cadet 1000 Engine


Cub Cadet 1000 lawn tractor photo
1974 - 1980
Quietline Series
Garden tractor
108
Series:80010001100
Engine Detail
Kohler K241AQS
gasoline
1-cylinder
air-cooled
Displacement389 cc
23.76 ci
Bore/Stroke3.25x2.875 inches
83 x 73 mm
Power (gross)10 hp
7.5 kW
Fuel systemKohler side-draft carburetor
Air cleanerdry
Rated RPM3400
Idle RPM1800-3600
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.035 inches
0.889 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches*Cold
0.254 mm
Exhaust valve clearance0.020 inches*Cold
0.508 mm
Engine Oil

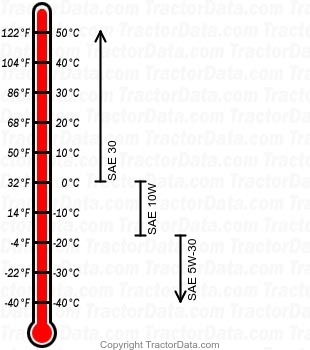

1000 gasoline engine oil chart
Oil capacity2.5 qts
2.4 L
Oil change30 h
