Cub Cadet 1000 Transmission


Cub Cadet 1000 lawn tractor photo
1974 - 1980
Quietline Series
Garden tractor
108
Series:80010001100
Transmissions overview
3-speed gear
6-speed creeper
Transmission
Typeshaft-driven gear
Gears3 forward and 1 reverse
Clutch4.5-inch dry disc
Oil capacity4 qts
3.8 L
Tractor must be stopped, and clutch used, to shift gears.
Speeds

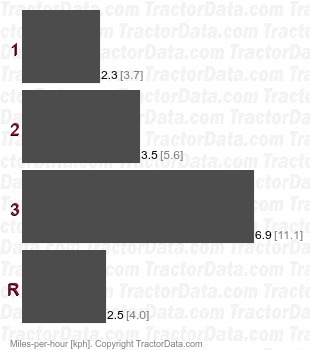

1000  shaft-driven gear speeds
Transmission
Typecreeper
Gears6 forward and 2 reverse
Clutch4.5-inch dry disc
Oil capacity4.25 qts
4.0 L
Adds a creeper range to the basic transmission. Creeper engaged by separate control lever.
Speeds

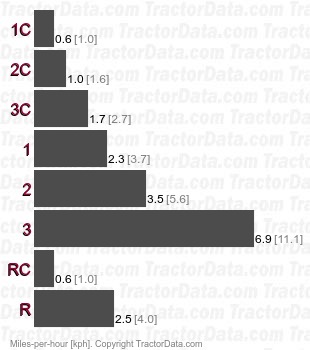

1000  creeper speeds
