Lawn Tractors > Cub Cadet > 800

Cub Cadet 800 Engine



Cub Cadet 800 tractor photo
1974 - 1975
Quietline Series
Garden tractor
Series map:
800
1000
8.0hp
10.0hp
Engine Detail
Kohler K181AQS
gasoline
1-cylinder
air-cooled
Displacement305 cc
18.63 ci
Bore/Stroke2.938x2.75 inches
75 x 70 mm
Power (gross)8 hp
6.0 kW
Fuel systemKohler side-draft carburetor
Air cleanerdry
Rated RPM3400
Idle RPM1800-3600
Starter volts12
SparkplugChampion J-8
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.006 inches (cold)
0.152 mm
Exhaust valve clearance0.017 inches (cold)
0.432 mm
Engine Oil

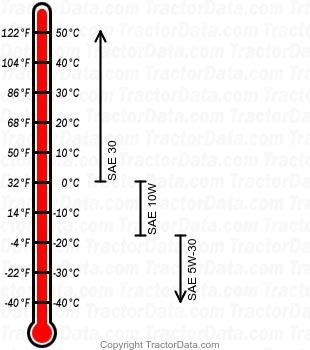

800 gasoline engine oil chart
Oil capacity1.25 qts
1.2 L
Oil change30 h
