Cub Cadet 149 Engine


Cub Cadet 149 tractor photo
1971 - 1974
1X8/1X9 Series
Garden tractor
Series map:
129
149
169
12.0hp
14.0hp
16.0hp
Engine Detail
Kohler K321A
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement512 cc
31.27 ci
Bore/Stroke3.50x3.25 inches
89 x 83 mm
Power14 hp
10.4 kW
Air cleanerdry cartridge
Rated RPM3600
Idle RPM1000-3800
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches*Cold
0.254 mm
Exhaust valve clearance0.020 inches*Cold
0.508 mm
Engine Oil

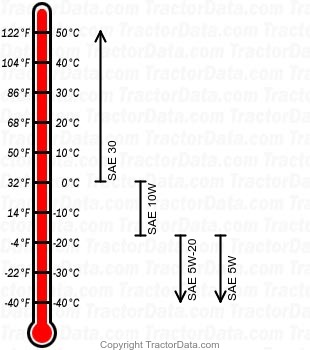

149 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change30 h
Cub Cadet 149 Engine

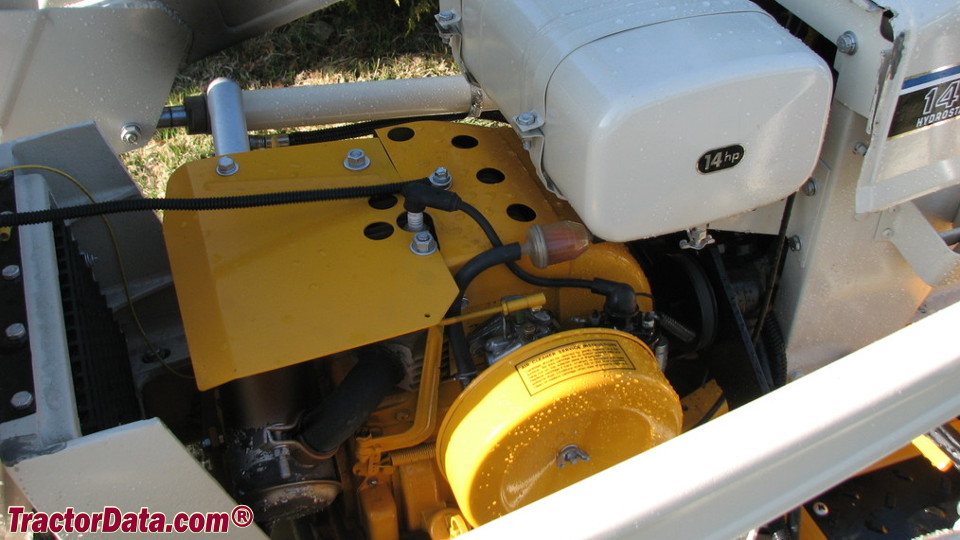

Cub Cadet 149 engine image
Image courtesy of Kevin Bowley
