Cub Cadet 104 Engine


Cub Cadet 104 lawn tractor photo
1967 - 1969
1X4/1X5 Series
Garden tractor
102
Series:72104105
106
Engine Detail
Kohler K241AS
gasoline
1-cylinder
air-cooled
Displacement391 cc
23.9 ci
Bore/Stroke3.25x2.875 inches
83 x 73 mm
Power10 hp
7.5 kW
Rated RPM3600
Idle RPM1000-3800
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches (cold)
0.254 mm
Exhaust valve clearance0.020 inches (cold)
0.508 mm
Engine Oil

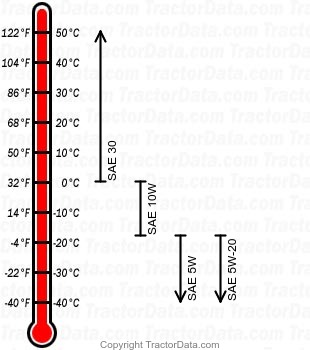

104 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change30 h
