Cub Cadet 72 Engine


Cub Cadet 72 lawn tractor photo
1967 - 1969
1X4/1X5 Series
Garden tractor
71
Series:72104
73
Engine Detail
Kohler K-161
gasoline
1-cylinder
air-cooled
Displacement266 cc
16.25 ci
Bore/Stroke2.875x2.5 inches
73 x 64 mm
Power7 hp
5.2 kW
Compression6.2:1
Rated RPM3600
Idle RPM1000-3780
Startermanual
 electric optional
Starter volts12
SparkplugChampion J-8
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.006 inches (cold)
0.152 mm
Exhaust valve clearance0.017 inches (cold)
0.432 mm
Engine Oil

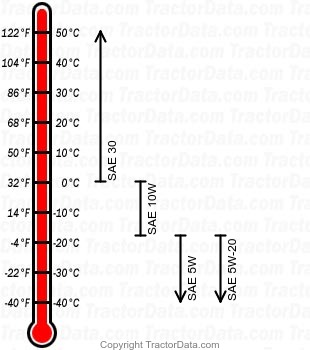

72 gasoline engine oil chart
Oil capacity1.125 qts
1.1 L
Oil change30 h
