Lawn Tractors > Cub Cadet > 106

Cub Cadet 106 Engine



Cub Cadet 106 tractor photo
1969 - 1971
1X6/1X7 Series
Garden tractor
Series map:
73
106
107
7.0hp
10.0hp
10.0hp
Engine Detail
Kohler K241A
gasoline
1-cylinder
air-cooled
Displacement391 cc
23.9 ci
Bore/Stroke3.25x2.875 inches
83 x 73 mm
Power10 hp
7.5 kW
Compression7:1
Rated RPM3600
Idle RPM1000-3800
Torque16.2 lb-ft
22.0 Nm
Torque RPM2200
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches (cold)
0.254 mm
Exhaust valve clearance0.020 inches (cold)
0.508 mm
Engine Oil

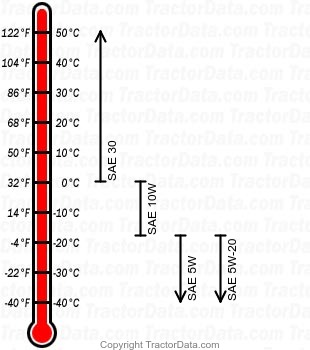

106 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
