Allis Chalmers 920

Allis Chalmers 920 lawn tractor photo
1984 - 1985
900 Series
Garden tractor
Series map:
ManufacturerAllis Chalmers
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price was $6,099 in 1985
Allis Chalmers 920 Engine
18.5HP Lombardini 790cc 2-cyl diesel
Fuel tank3 gal
11.4 L
Engine details ...
Two-wheel drive
Final drivesspur gear
 power optional
Mechanical band brakes
Open operator station.
Tractor hitch
Typesleeve hitch *Optional. Part number 1600055.
Dimensions & Tires
Wheelbase48.1 inches
122 cm
Weight689 lbs
312 kg
Front tire16-6.50x8
Rear tire23-10.50x12
Full dimensions and tires ...
Allis Chalmers 920 attachments
42" mid-mount mower deck
48" mid-mount mower deck
Attachment details ...
920 Serial Numbers

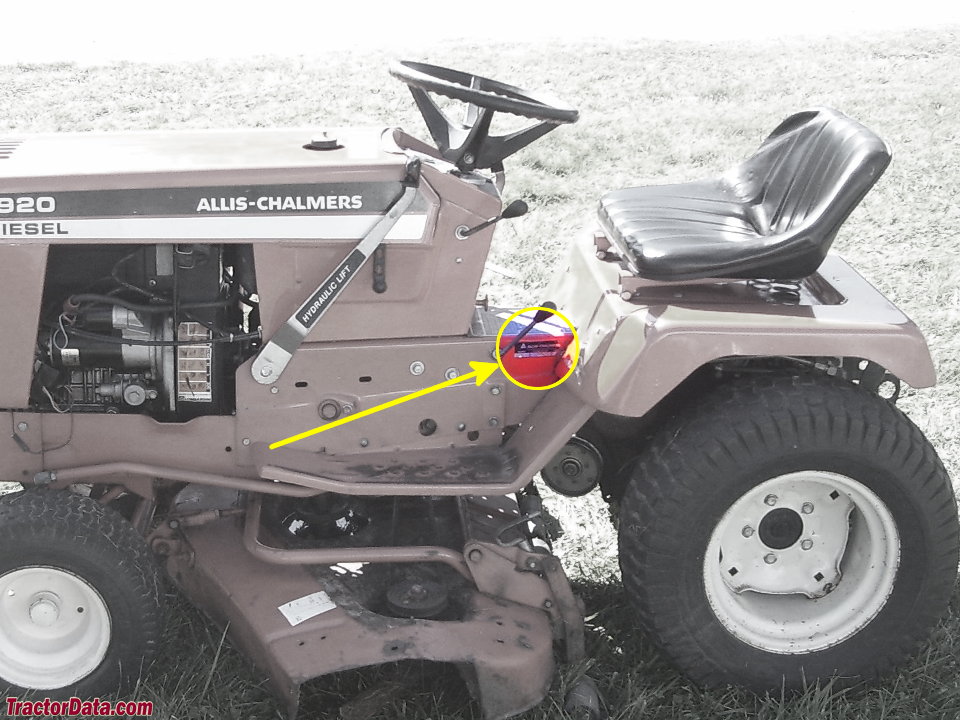

920 Serial Location
Allis Chalmers 920 serial number location
Serial number plate on the left side of the tractor frame, just ahead of the seat.
Links information, photos and old advertising literature at
Charging systemflywheel alternator
Charging amps16
Battery CCA500
Battery volts12
Battery Group24
920 references literature
920 Diesel Tractor published in 1984, by Allis-Chalmers
Operator's Manual Model 920 (1673875) published in 1984
New 920 Diesel published in 1984, by Allis-Chalmers
1985 Lawn and Garden Line published by Allis-Chalmers
