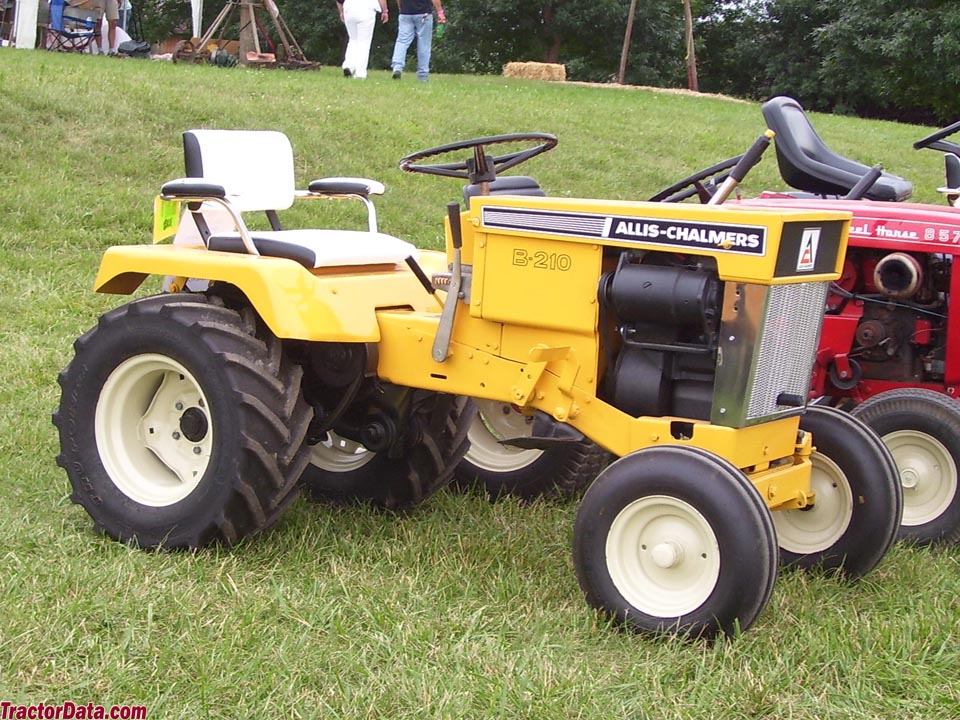

Allis Chalmers B-210
|
|
| Production | |
| Manufacturer | Allis Chalmers |
| Garden tractor | |
| Built in Lexington, South Carolina, USA | |
| Allis Chalmers B-210 Engine | |
| 10HP Briggs & Stratton 393cc 1-cyl gasoline | |
| Fuel tank | 1.5 gal 5.7 L |
 Engine details ... | |
| Allis Chalmers B-210 Transmission | |
| 21-speed variator | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Power Take-off (PTO) | |
| Rear PTO | live |
| Mid PTO | live |
| Front PTO | live |
| Dimensions & Tires | |
| Wheelbase | 48 inches 121 cm |
| Weight | 745 lbs 337 kg |
 Full dimensions and tires ... | |
| Allis Chalmers B-210 attachments | |
| 42" mid-mount mower deck | |
 Attachment details ... |
| References | |
 | |
| Service Manual B Series Tractors (9003453) published in 1976 |
