Lawn Tractors > Allis Chalmers > B-210

Allis Chalmers B-210 Transmission



Allis Chalmers B-210 lawn tractor photo
1970 - 1972
B Series
Garden tractor
Series map:
B-208
B-210
B-212
8.0hp
10.0hp
12.0hp
Transmission
TransmissionVari-Shift
Typebelt-driven variator
Gears21 forward and 7 reverse
Oil capacity1.5 qts
1.4 L
Three gears, plus reverse, with seven-position variator.
Speeds

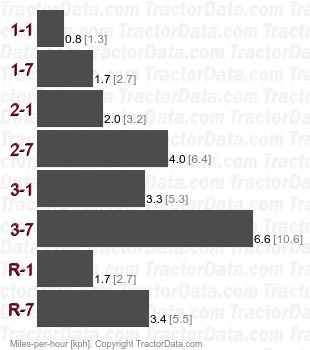

B-210 Vari-Shift belt-driven variator speeds
Shift Pattern
Allis Chalmers B-210 transmission controls

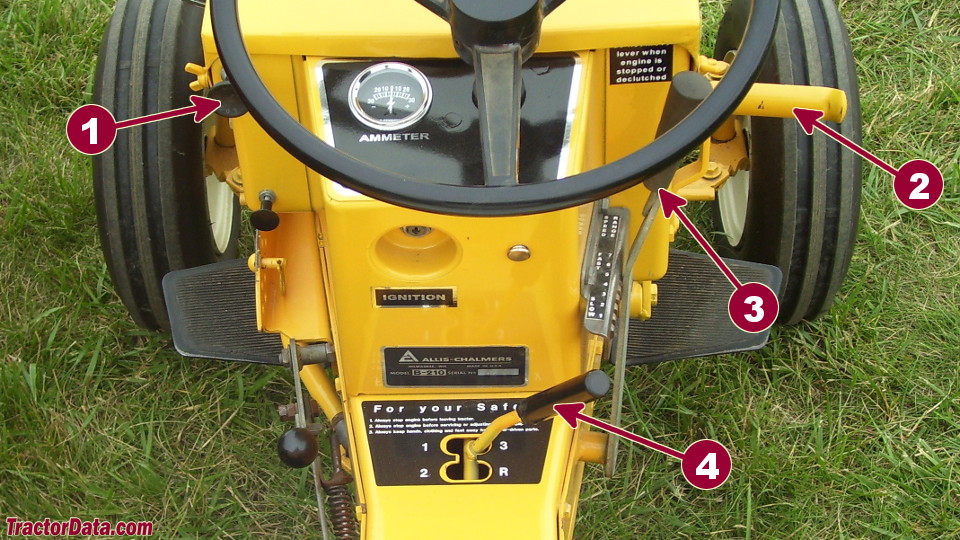

B-210 Transmission Controls
Allis Chalmers B-210 transmission controls
1Throttle
2Clutch/brake
3Variator
4Gear shift
