Allis Chalmers B-110 Transmission


Allis Chalmers B-110 lawn tractor photo
1968 - 1970
B Series
Garden tractor
Series map:
B-110
B-112
10.0hp
12.0hp
Transmissions overview
3-speed gear
6-speed
Transmission
Typegear
Gears3 forward and 1 reverse
Speeds
B-110  gear speeds
Shift Pattern

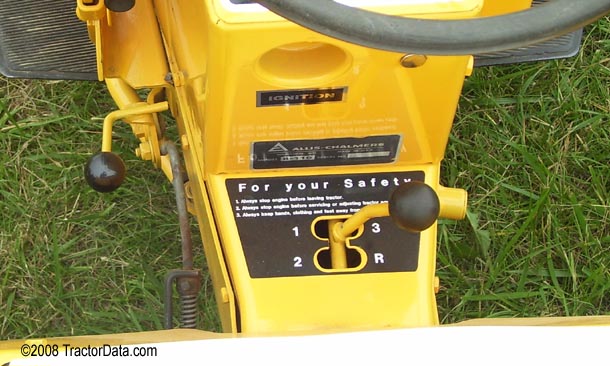

Allis Chalmers B-110 transmission controls
Transmission
TransmissionHi-Lo
Gears6 forward and 2 reverse
