Lawn Tractors > John Deere > X744

John Deere X744



John Deere X744 tractor photo
2006 - 2012
Select X700 Series
Garden tractor
Series map:
X740
X744
X748
24.0hp
24.0hp
24.0hp
Production
ManufacturerJohn Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price was $10,899 in 2011
Variants
X740two-wheel drive
X7442WD, all-wheel steer
X748four-wheel drive
X7494WD, all-wheel steer
John Deere X744 Engines
24HP Yanmar 1116cc 3-cyl diesel
24HP Yanmar 904cc 3-cyl diesel
Fuel tank6.5 gal
24.6 L
Engine details ...
John Deere X744 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steeringfour-wheel hydrostatic power
Wet disc brakes
Open operator station featuring 18-inch seat with 7-inches of adjustment. Cupholder, toolbox, tilt steering, and 12-volt outlet standard. Optional soft-side or hard cab.
Photos

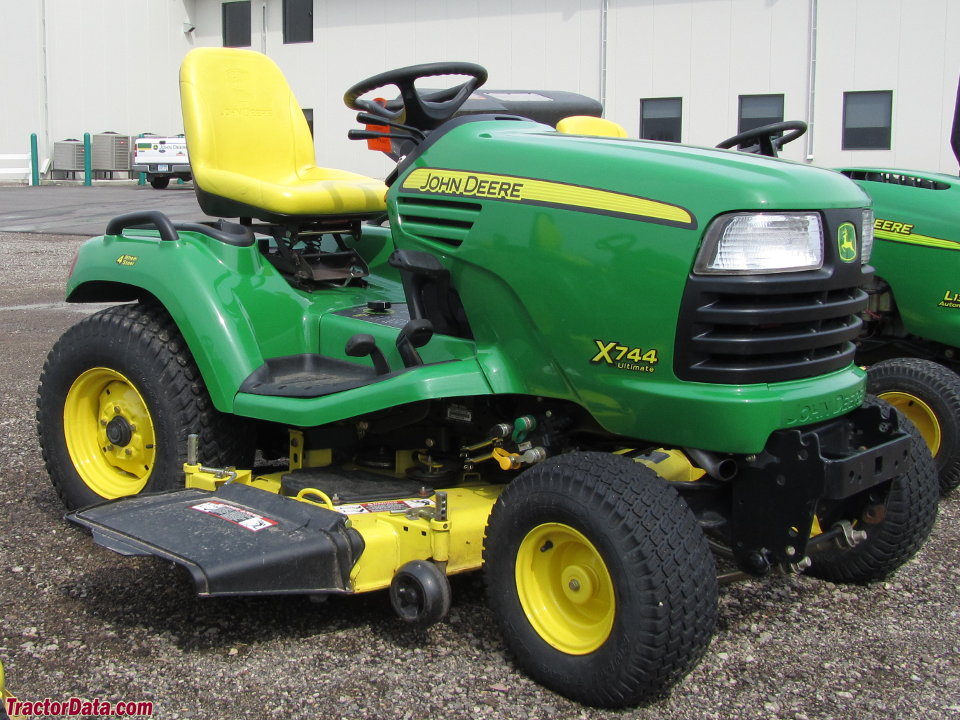

John Deere X744.
John Deere X744 photos...
Hydraulics
Pressure924 psi
63.7 bar
Valves2
Total flow4.5 gpm
17.0 lpm
Tractor hitch
Rear Type0 OptOptional
 1-Limited OptOptional
Power Take-off (PTO)
Rear PTOindependent OptOptional
Rear PTO Type540
Mid PTOindependent
Mid PTO Type2000
Front PTOoptional
Front PTO Type2000
Dimensions & Tires
Wheelbase54.5 inches
138 cm
Weight1060 lbs
480 kg
Front tire18x8.8-8
Rear tire26x12-12
Full dimensions and tires ...
John Deere X744 attachments
48" mid-mount mower deck
54" mid-mount mower deck
62" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
Attachment details ...
X744 Serial Number Location

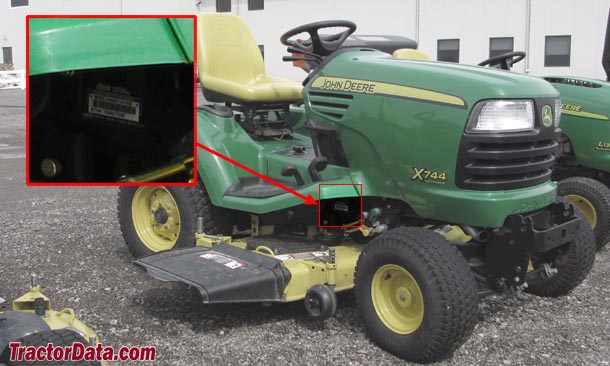

John Deere X744 serial number location
Serial number tag on the center-right of the John Deere X744 tractor frame, just behind the hydraulic couplers.
X744 Serial Numbers
2006010001
2007020001
2008030001
2009040001
2010050001
2011060001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Battery CCA500
Battery volts12
References
X744 references literature
Select Series Tractors published in 2007, by John Deere
Select Series Tractors published in 2009, by John Deere
Select Series Tractors published in 2012, by John Deere
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere
Riding Lawn Equipment Attachments & Accessories published in 2011, by John Deere
