John Deere X585 Engine


John Deere X585 lawn tractor photo
2002 - 2006
HDGT X Series
Garden tractor
Series:X575X585X595
X728
Engine Detail
Kawasaki FD711D
gasoline
2-cylinder
liquid-cooled
The dealer sales manual identifies this engine as a FD671D-DFI. The Deere parts manual also lists a FD750D.
Displacement745 cc
45.5 ci
Bore/Stroke3.07x3.07 inches
78 x 78 mm
Power25 hp
18.6 kW
Fuel systemfuel injected
Air cleanerdual paper element
Compression8.0:1
Idle RPM1600-3550
Torque36.1 lb-ft
49.0 Nm
Torque RPM2000
Starter volts12
Oil capacity1.9 qts
1.8 L
Coolant capacity4.2 qts
4.0 L

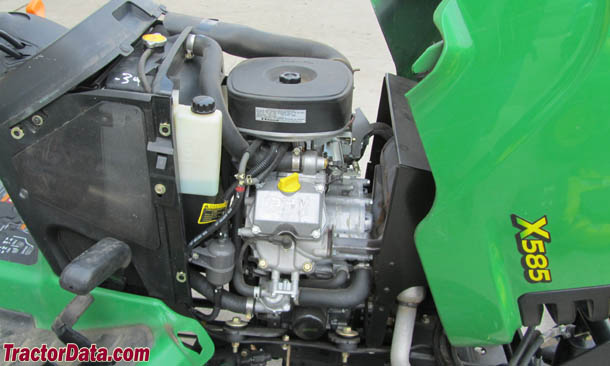

John Deere X585 Engine
John Deere X585 engine image
