John Deere X595 Engine
|
|
| Engine options | |
| 24HP Yanmar 1006cc 3-cyl diesel | |
| 24HP Yanmar 1116cc 3-cyl diesel |
| Engine Detail | |
| Yanmar 3TNE74 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled horizontal-shaft inline | |
| Original engine used from the start of X595 production until serial number 40000. | |
| Displacement | 1006 cc 61.4 ci |
| Power (gross) | 24 hp 17.9 kW |
| Fuel system | mechanical indirect injection |
| Air cleaner | dual paper elements |
| Compression | 23:1 |
| Starter volts | 12 |
| Starter power | 1.1 hp 0.8 kW |
| Coolant capacity | 3 qts 2.8 L |

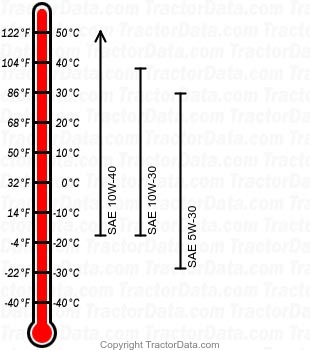

| Engine Oil | |
| |
| Oil capacity | 3 qts 2.8 L |
| Engine Detail | |
| Yanmar 3TNV76 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Larger diesel engine used on the John Deere X595 starting at serial number 40000. | |
| Displacement | 1116 cc 68.1 ci |
| Power | 24 hp 17.9 kW |
| Fuel system | mechanical indirect injection |
| Air cleaner | dual paper elements |
| Compression | 23.4:1 |
| Starter volts | 12 |
| Starter power | 1.6 hp 1.2 kW |
| Coolant capacity | 3 qts 2.8 L |
| Engine Oil | |
| |
| Oil capacity | 2.25 qts 2.1 L |
