John Deere X520 Transmission


John Deere X520 lawn tractor photo
2006 - 2008
Select X500 Series
Garden tractor
Series:X500X520X534
X530
Transmission
TransmissionTuff Torq K72B
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity5.6 qts
5.3 L
Hydrostatic transmission operated with two foot pedals and dash-mounted cruise control.

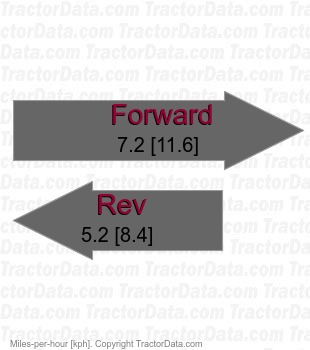

Speeds
X520 K72B belt-driven hydrostatic speeds
X520 Transmission Controls
John Deere X520 transmission controls
1Throttle
2Cruise control
3Brake
4Forward
5Reverse
6Parking brake
7Differential lock
