John Deere X520 Engine

John Deere X520 lawn tractor photo
2006 - 2008
Select X500 Series
Garden tractor
Engine Detail
Kawasaki FD731V
Displacement675 cc
41.2 ci
Bore/Stroke2.96x2.99 inches
75 x 76 mm
Power (gross)26 hp
19.4 kW
Fuel systemcarburetor
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.004 inches (cold)
0.102 mm
Exhaust valve clearance0.004 inches (cold)
0.102 mm
Engine Oil

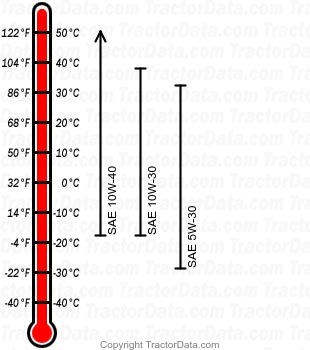

X520 gasoline engine oil chart
Oil capacity2 qts
1.9 L
