| | 2006 - 2015 |
|
| Select X500 Series | | Garden tractor |
|
Series map:
X500
X520
25.0hp
26.0hp
| Transmission |
| Transmission | Tuff Torq K72B
|
| Type | belt-driven hydrostatic
|
| Gears | infinite forward and reverse
|
| Oil capacity | 5.6 qts
5.3 L
|
| Hydrostatic transmission operated with two foot pedals and dash-mounted cruise control. |

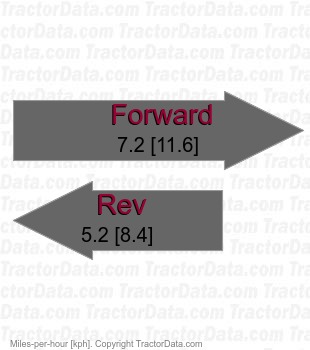

| Speeds |
|
| X500 Transmission Controls |
 |
| 1 | Throttle
|
| 2 | Cruise control
|
| 3 | Brake
|
| 4 | Forward
|
| 5 | Reverse
|
| 6 | Parking brake
|
| 7 | Differential lock
|
