| | 2002 - 2005 |
| LT Series | | Lawn tractor |
|
Series map:
LT150
LT160
15.0hp
16.0hp
| Engine Detail |
| Kohler Command CV426S |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Original engine. The CV426S was used during the 2002 model year. |
| Displacement | 426 cc
26 ci
|
| Bore/Stroke | 3.54x2.64 inches
90 x 67 mm
|
| Power (gross) | 15 hp
11.2 kW
|
| Starter volts | 12
|
| Sparkplug gap | 0.040 inches
1.016 mm
|

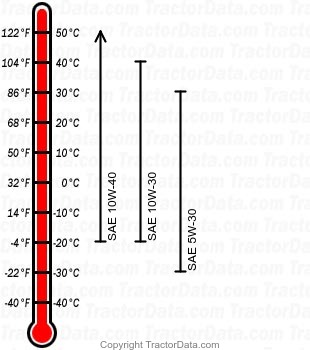

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Oil change | 100 h
|
| Engine Detail |
| Kohler CV15S |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| The CV-15S was introduced on the Deere LT150 in the 2003 model year, tractor serial number 35001. |
| Displacement | 426 cc
26 ci
|
| Power (gross) | 15 hp
11.2 kW
|
| Air cleaner | paper and foam
|
| Idle RPM | 1650-3350
|
| Engine Oil |
|
| Oil change | 100 h
|

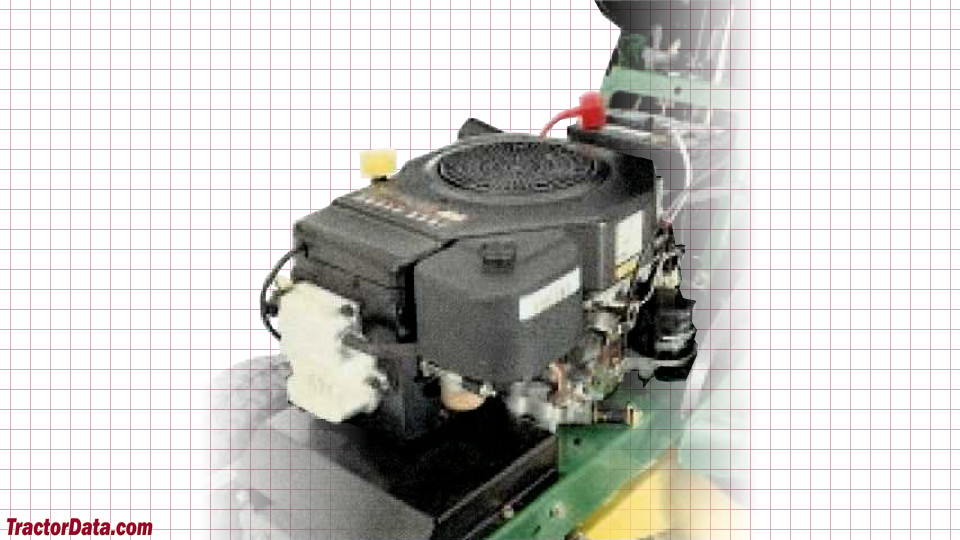

| John Deere LT150 Engine |
 |
