John Deere LT150 Transmission


John Deere LT150 tractor photo
2002 - 2005
LT Series
Lawn tractor
Series map:
LT150
LT160
15.0hp
16.0hp
Transmission options
5-speed gear
hydrostatic
Transmission
TransmissionDana 4360
Typebelt-driven gear
Gears5 forward and 1 reverse
Oil changesealed unit, owner service is not recommended
The 5-speed transmission was built during the 2002 model year only.
Speeds
LT150 4360 belt-driven gear speeds
Transmission
TransmissionTuff Torq K46
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil changesealed unit, owner service is not recommended
Speeds

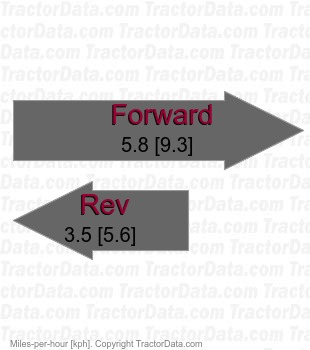

LT150 K46 belt-driven hydrostatic speeds
