John Deere LT160 Engine


John Deere LT160 tractor photo
2002 - 2005
LT Series
Lawn tractor
Series map:
LT150
LT160
LT170
15.0hp
16.0hp
16.0hp
Engine Detail
Kohler Command CV460S
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement458 cc
28 ci
Bore/Stroke3.43x3.03 inches
87 x 77 mm
Power (gross)16 hp
11.9 kW
Air cleanerpaper and foam
Idle RPM1650-3350
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

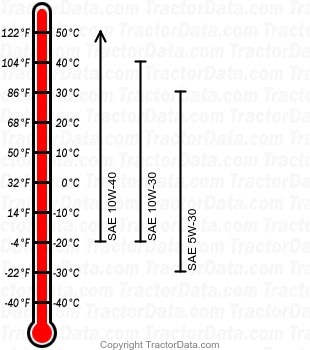

LT160 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change100 h
John Deere LT160 Engine

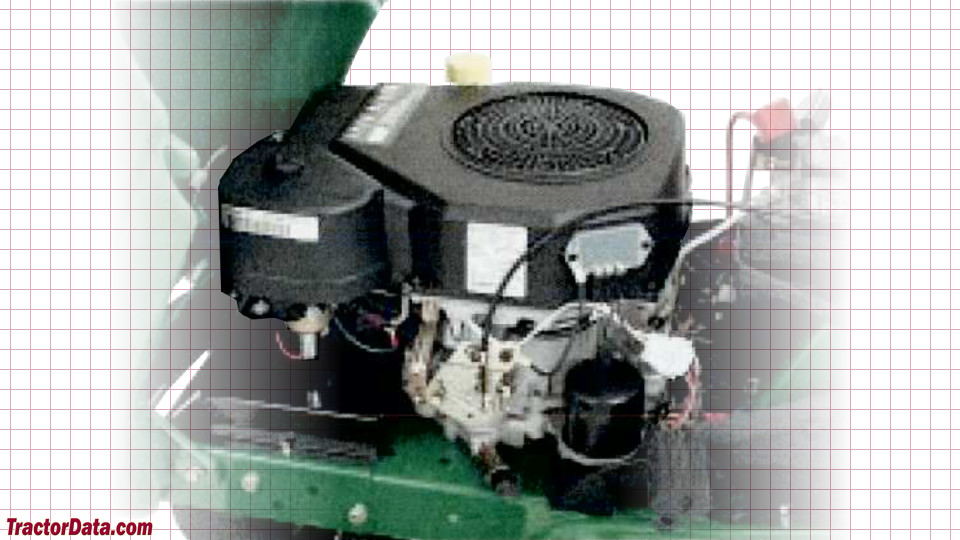

John Deere LT160 engine image
