John Deere GX335 Engine

John Deere GX335 lawn tractor photo
2002 - 2005
GX300 Series
Garden tractor
Engine Detail
Kawasaki FH601V
air-cooled vertical-shaft V-Twin
Displacement675 cc
41.2 ci
Bore/Stroke2.96x2.99 inches
75 x 76 mm
Power20 hp
14.9 kW
Starter volts12
Oil capacity1.8 qts
1.7 L
Sparkplug gap0.030 inches
0.762 mm
John Deere GX335 Engine

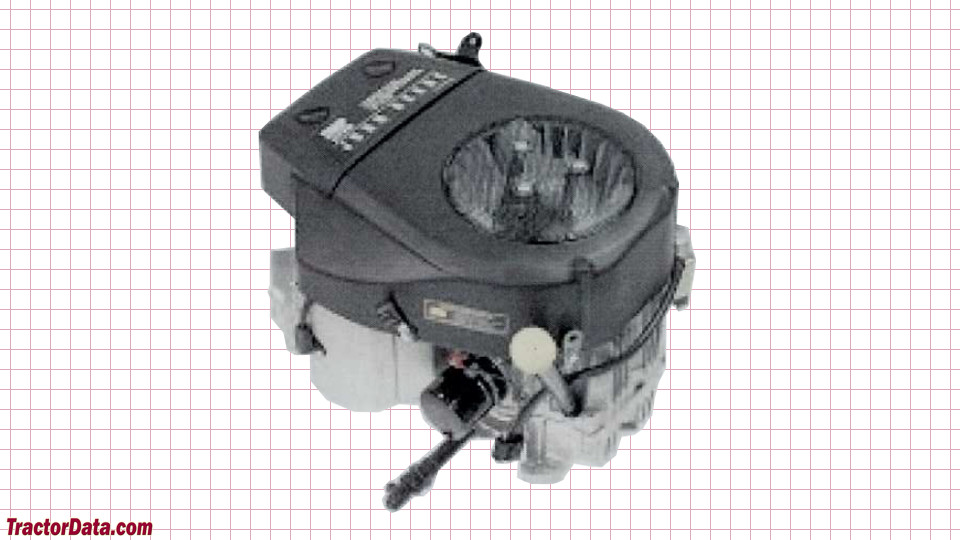

John Deere GX335 engine image
