John Deere GX345 Engine


John Deere GX345 lawn tractor photo
2002 - 2005
GX300 Series
Garden tractor
345
Series:GX335GX345GX355
Engine Detail
Kawasaki FD611V
gasoline
2-cylinder
liquid-cooled vertical-shaft V-Twin
Displacement585 cc
35.7 ci
Bore/Stroke2.91x2.68 inches
74 x 68 mm
Power20 hp
14.9 kW
Compression9:1
Starter volts12
Coolant capacity3.3 qts
3.1 L
Point gap0.030 inches
0.762 mm
Engine Oil

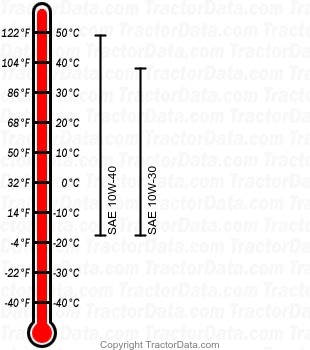

GX345 gasoline engine oil chart
Oil capacity2.0 qts
1.9 L
John Deere GX345 Engine

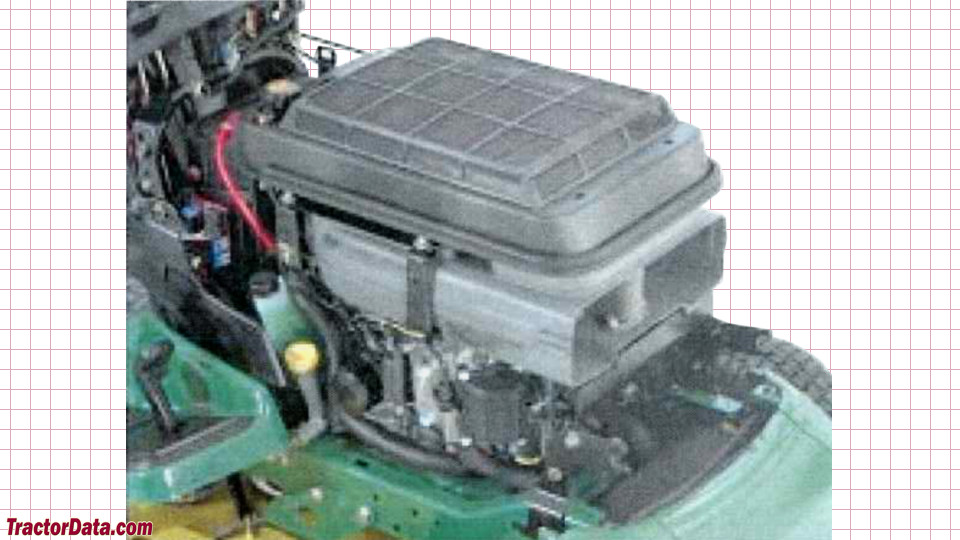

John Deere GX345 engine image
