John Deere GX325 Engine


John Deere GX325 lawn tractor photo
2002 - 2003
GX300 Series
Garden tractor
Series map:
GX325
GX335
18.0hp
20.0hp
Engine Detail
Kawasaki FH531V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement491 cc
30 ci
Bore/Stroke2.68x2.68 inches
68 x 68 mm
Power18 hp
13.4 kW
Compression8.5:1
Starter volts12
Oil capacity1.8 qts
1.7 L
Sparkplug gap0.030 inches
0.762 mm

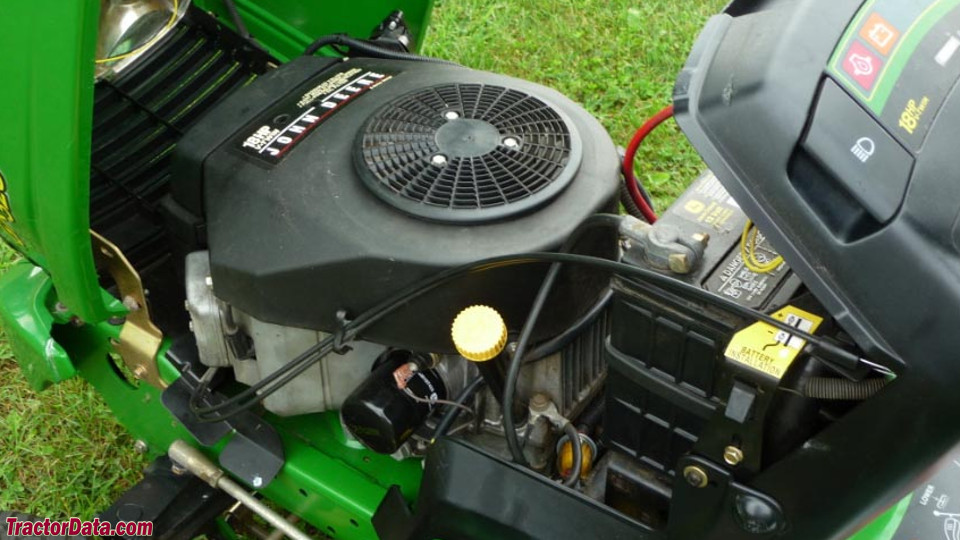

John Deere GX325 Engine
John Deere GX325 engine image
Image courtesy of Jim
