John Deere GX255 Engine

John Deere GX255 lawn tractor photo
2004 - 2005
Garden tractor
Series map:
Engine Detail
Kawasaki FH601V
air-cooled vertical-shaft V-Twin
Displacement675 cc
41.2 ci
Bore/Stroke2.96x2.99 inches
75 x 76 mm
Power (gross)20 hp
14.9 kW
Starter volts12
Oil capacity1.8 qts
1.7 L
Oil change100 h
Sparkplug gap0.030 inches
0.762 mm

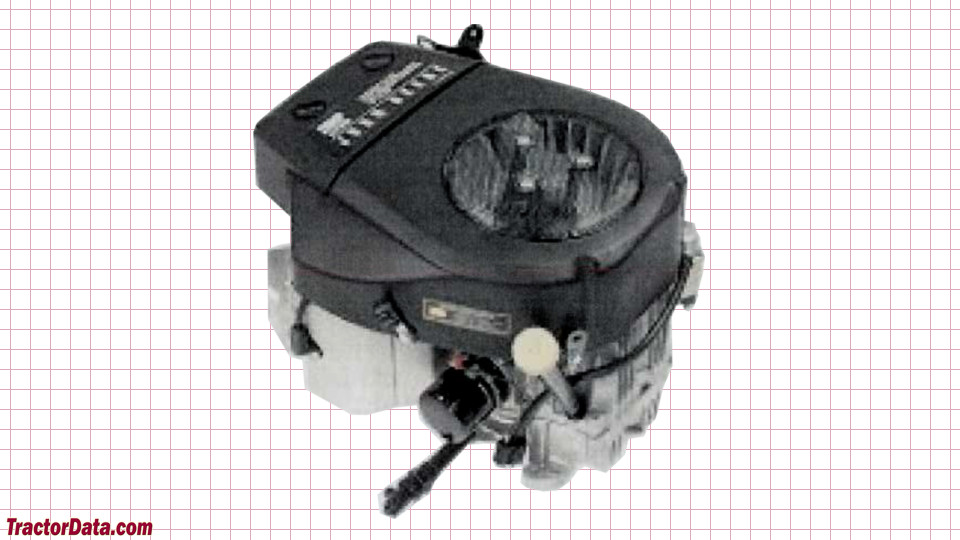

John Deere GX255 Engine
John Deere GX255 engine image
