Tractors > Allis Chalmers > 545

Allis Chalmers 545



Allis Chalmers 545 tractor photo
1965 - 1971
45 Series
Wheel Loader
Series map:
545
645
105.0hp
165.0hp
Production
ManufacturerAllis Chalmers
Wheel Loader
Built in Deerfield, Illinois, USA
Total built2600
Variants
545Hheavy-duty
Allis Chalmers 545 Engines
Allis Chalmers 4.9L 6-cyl diesel
Allis Chalmers 4.9L 6-cyl gasoline
Engine details ...
Allis Chalmers 545 Transmission
4-speed power shift
Transmission details ...
Allis Chalmers 545 Power
Engine (gross)105 hp
78.3 kW
Engine (net)105 hp
78.3 kW
Mechanical
Four-wheel drive
Final drivesplanetary
Articulated power steering
Hydraulic brakes
Open operator station. Cab optional with available heater and air-conditioning.
Photos
No photos of the Allis Chalmers 545 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel44 gal
166.5 L
Hydraulic system30 gal
113.6 L
Hydraulics
Typeopen center
Capacity30 gal
113.6 L
Gas Pressure1800 psi
124.1 bar
Diesel Pressure1900 psi
131.0 bar
Pump flow52 gpm (early)
196.8 lpm
 55 gpm (late)
208.2 lpm
Steering flow11.3 gpm
42.8 lpm
Dimensions & Tires
Wheelbase110 inches
279 cm
Weight16550 to 19800 pounds
Front tire13.00-24
Rear tire13.00-24
Full dimensions and tires ...
Allis Chalmers 545 attachments
front-end loader
backhoe
Attachment details ...
Electrical
Groundnegative
Battery volts12
References

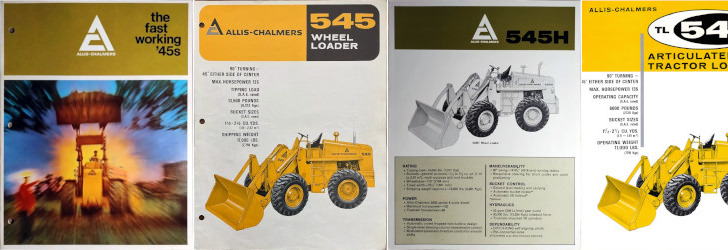

545 references literature
The fast working '45s published in 1970, by Allis Chalmers
545 Wheel Loader published in 1970, by Allis Chalmers
545H Wheel Loader published in 1970, by Allis Chalmers
TL 545 Articulated Wheel Loader published in 1966, by Allis Chalmers
