John Deere 3010 Wheel Engine


John Deere 3010 Wheel industrial tractor photo
1961 - 1963
New Generation Series
Industrial tractor
Series:20103010 Wheel4010
Engines overview
John Deere 3.3L 4-cyl gasoline
John Deere 4.2L 4-cyl diesel

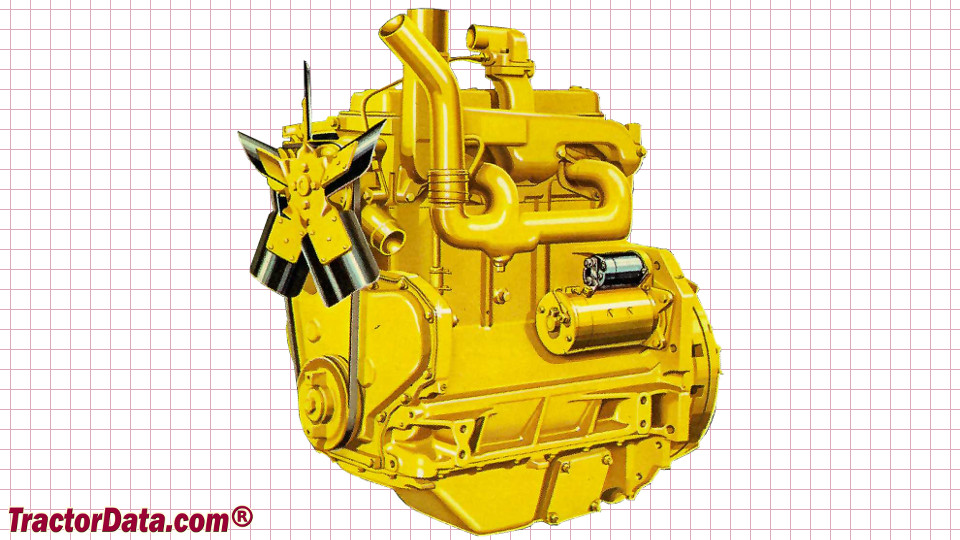

Engine Detail
John Deere
gasoline
4-cylinder
liquid-cooled
Displacement201 ci
3.3 L
Bore/Stroke4.00x4.00 inches
102 x 102 mm
Air cleaneroil bath
Compression7.5:1
Rated RPM2200
Torque164 lb-ft
222.4 Nm
Torque RPM900
Starter volts12
Oil capacity8 qts
7.6 L
Coolant capacity19 qts
18.0 L

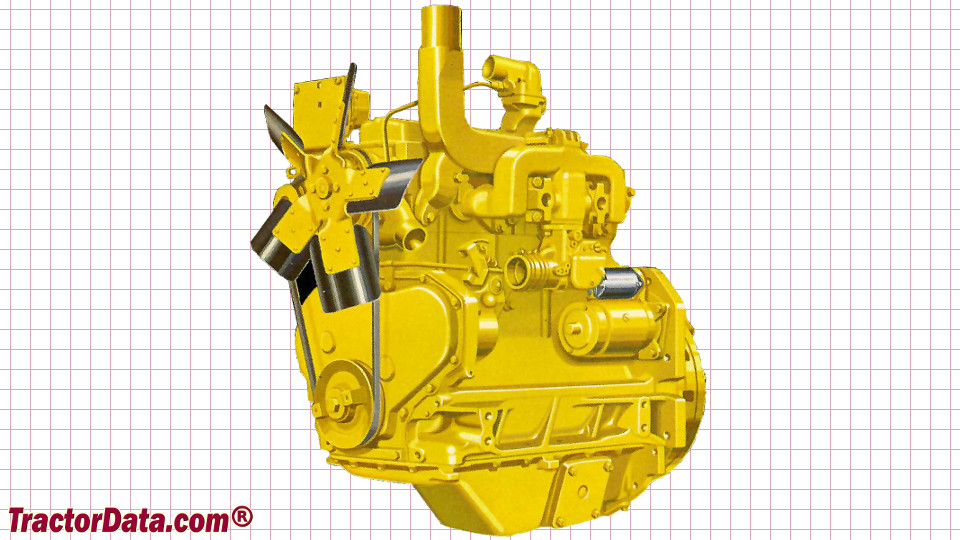

Engine Detail
John Deere
diesel
4-cylinder
liquid-cooled
Displacement254 ci
4.2 L
Bore/Stroke4.125x4.75 inches
105 x 121 mm
Air cleaneroil bath
Pre-heatingether injection
Compression16.4:1
Rated RPM2200
Torque179 lb-ft
242.7 Nm
Torque RPM1500
Starter volts24
Oil capacity8 qts
7.6 L
Coolant capacity19 qts
18.0 L
